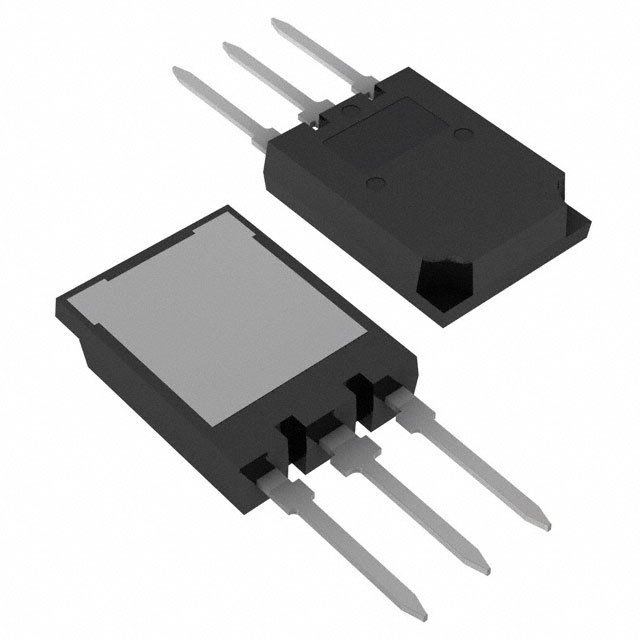

The Infineon Technologies IRG7PSH54K10 is an IGBT transistor with a SUPER-247 (TO-274AA) package.

• VCEO Maximum Collector-Emitter Breakdown Voltage: 1200V
• Maximum Current Collector: 120A
• Maximum Power Dissipation: 520W
• Temperature Range for Operating: -40°C to 150°C (TJ)
• Total Switching Energy (Ets) (on): 4.8mJ
• Total Switching Energy (Ets) (off): 2.8mJ
• Turn-On Delay Time: 110ns
• Turn-Off Delay Time: 490ns
• Gate Charge: 435nC
• Input Type: Standard
• Reverse Recovery Time (trr): 170ns
• Collector-Emitter Saturation Voltage (max): 2.4V @ 15V, 50A

This product belongs to the Discrete Semiconductor Products category and is not for new designs. The supply and demand status is limited.
