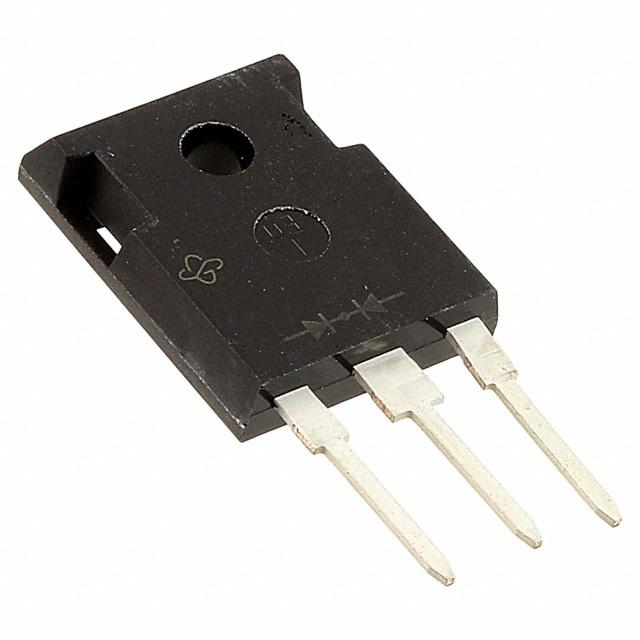

V50100PW-M3/4W Vishay
Same model may have multiple batches, images only for reference.

V50100PW-M3/4W

Part No V50100PW-M3/4W
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 100V TO3PW
Datasheet
V50100PW-M3/4W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 25A
Voltage - Forward (Vf) (Max) @ If 840mV @ 25A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 100V
Operating Temperature - Junction -40°C to 150°C
Mounting Through Hole
Case / Package TO-3PW
Win Source Part Number 1116881-V50100PW-M3/4W
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian V50100PW-M3/4W CAD Model

Description

The Vishay V50100PW-M3/4W is a Schottky diode with a maximum reverse voltage of 100V and an average rectified current of 25A per diode.

  • Maximum Reverse Voltage: 100V
  • Average Rectified Current: 25A per diode
  • Forward Voltage: 840mV @ 25A
  • Reverse Leakage Current: 1mA @ 100V
  • Package: TO-3PW
  • Operating Temperature Range: -40°C to 150°C
  • Suitable For: Discrete Semiconductor Products
