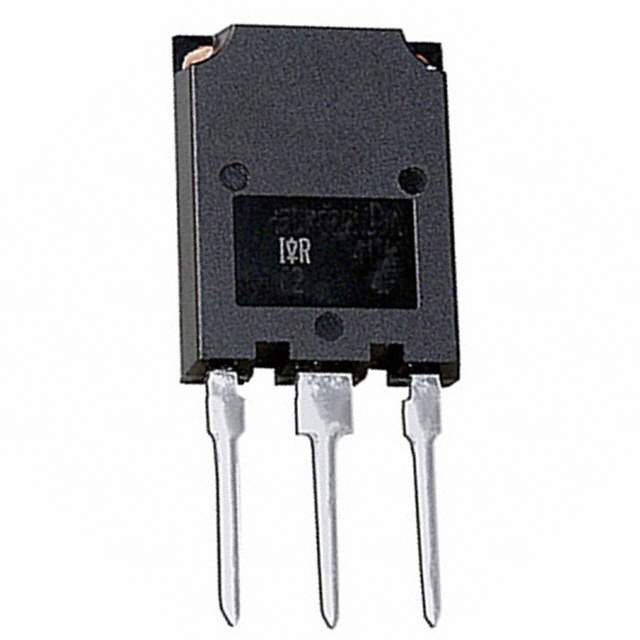

IRG4PSH71KD

Name: IRG4PSH71KD
Brand: Infineon Technologies
SKU: 605624
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRG4PSH71KD
Manufacturer	Infineon Technologies
Catalog	IGBTs - Single
Description	INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE(Vces=1200V, Vce(on)typ.=2.97V, @Vge=15V, Ic=42A) \| IGBT 1200V 78A 350W SUPER247
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Bulk
Status	Obsolete
Voltage - Collector Emitter Breakdown (Maximum)	1200V
Current - Collector (Ic) (Maximum)	78A
Current - Collector Pulsed (Icm)	156A
Vce(on) (Maximum) at Vge, Ic	3.9V at 15V, 42A
Maximum Power	350W
Switching Energy	5.68mJ (on), 3.23mJ (off)
Input Type	Standard
Gate Charge	410nC
Td (on/off) at 25°C	67ns/230ns
Test Condition	800V, 42A, 5Ohm, 15V
Reverse Recovery Time (trr)	107ns
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	Through Hole
Manufacturer Package	TO-274AA
Supplier Device Package	SUPER-247 (TO-274AA)
Manufacturer Pack Quantity	25
MSL Level	1 (Unlimited)
Win Source Part Number	1188312-IRG4PSH71KD
Manufacturer Homepage	www.irf.com
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRG4PSH71KD CAD Model

Description

The Infineon Technologies IRG4PSH71KD is a high-performance IGBT designed for various applications.

Collector-Emitter Breakdown Voltage: 1200V
Continuous Collector Current: 78A
Operating Temperature Range: -55°C to 150°C
On-State Voltage: 3.9V @ 15V and 42A
Description: The Infineon Technologies IRG4PSH71KD is a reliable and high-performance IGBT that can be used in a variety of applications.
