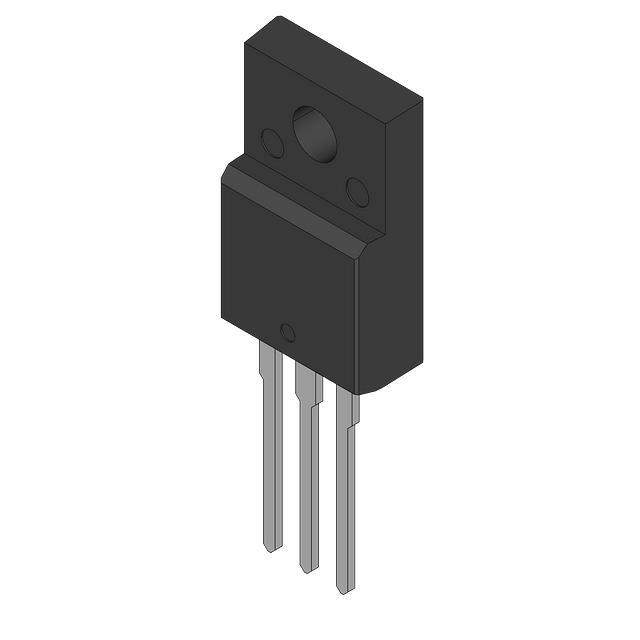

IRFIZ48NPBF

Name: IRFIZ48NPBF
Brand: Infineon Technologies
SKU: 605022
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRFIZ48NPBF
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	POWER MOSFET \| MOSFET N-CH 55V 40A TO220FP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tube
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	55V
Id - Continuous Drain Current	40A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	16mOhm at 22A, 10V
Gate Source Voltage(th) (Maximum) at Id	4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	89nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	1900pF at 25V
Power Dissipation (Maximum)	54W
Temperature Range - Operating	-55°C ~ 175°C
Mounting Style	Through Hole
Supplier Device Package	TO-220AB Full-Pak
Manufacturer Package	TO-220-3 Full Pack
Manufacturer Pack Quantity	2,000
MSL Level	1 (Unlimited)
Win Source Part Number	1187710-IRFIZ48NPBF
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRFIZ48NPBF CAD Model

Description

The IRFIZ48NPBF is a MOSFET transistor that is designed for use in discrete semiconductor products from Infineon Technologies.

Mounting Type: Through-Hole
Package: TO-220AB Full-Pak
Channel Type: N-Channel
Gate-Source Voltage (Maximum): ±20V
Drain-Source Breakdown Voltage: 55V
Continuous Drain Current: 40A
Maximum Rds on: 16mOhm @ 22A, 10V
Maximum Gate-Source Voltage(th): 4V @ 250µA
Maximum Gate Charge (Qg): 89nC @ 10V
Maximum Input Capacitance (Ciss): 1900pF @ 25V
Operating Temperature: -55°C to 175°C
Maximum Power Dissipation: 54W
Supply and Demand Status: Limited
