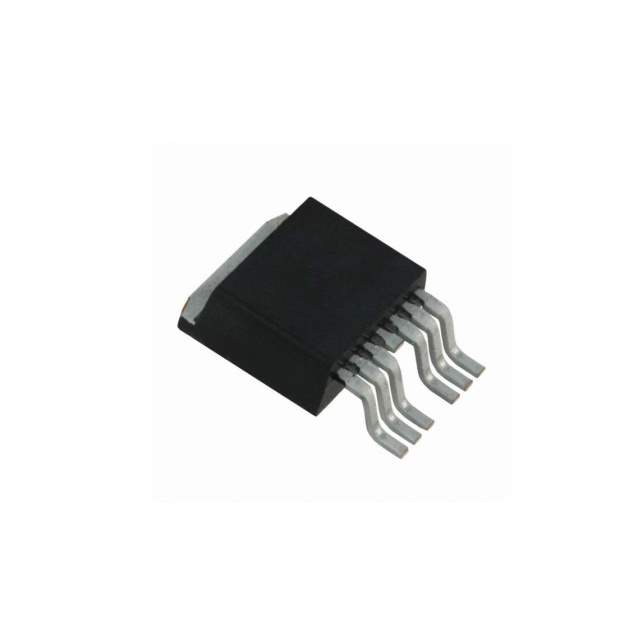

IRF135SA204

Name: IRF135SA204
Brand: Infineon Technologies
SKU: 604204
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRF135SA204
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	Synchronous rectifier applications \| MOSFET N-CH 135V 160A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	135V
Id - Continuous Drain Current	160A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	5.9mOhm at 96A, 10V
Gate Source Voltage(th) (Maximum) at Id	4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	315nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	11690pF at 50V
Power Dissipation (Maximum)	500W
Temperature Range - Operating	-55°C ~ 175°C
Mounting Style	SMD
Supplier Device Package	D2PAK-7
Manufacturer Package	TO-263-7, D2Pak (6 Leads + Tab) Variant
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1186892-IRF135SA204
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRF135SA204 CAD Model

Description

The Infineon Technologies MOSFET is a high-performance electronic component that is ideal for use in various applications.

FET Type: N-Channel
Drive Voltage: 10V
Packaging: Reel
Mounting Style: SMD
Power Dissipation: 500W
Vds - Drain-Source Breakdown Voltage: 135V
Gate Charge (Qg) (Maximum) @ Vgs: 315nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds: 11690pF @ 50V
Category: Discrete Semiconductor Products
