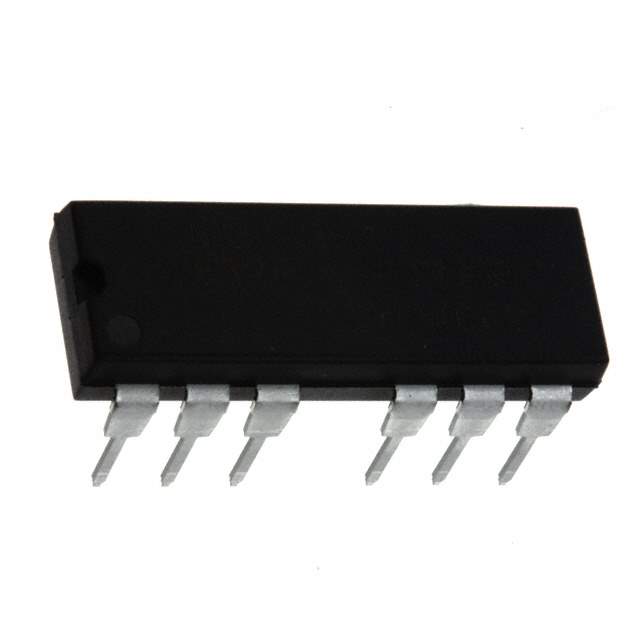

IR2113-1 Real Image
Same model may have multiple batches, images only for reference.

IR2113-1

Part No IR2113-1
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC MOSFET DRVR HI/LO SIDE 14-DIP
Datasheet
IR2113-1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Supply Voltage - Operating 3.3 V to 20 V
Logic Voltage - VIL, VIH 6V, 9.5V
Current - Peak Output (Source, Sink) 2A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 600V
Rise and Fall Time 25ns, 17ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package 14-PDIP
Win Source Part Number 1046153-IR2113-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IR2113-1 CAD Model

Description

The Infineon Technologies IR2113-1 is an integrated circuit with two independent drivers for IGBT and N-Channel MOSFET gates.

  • Driver Type: IGBT, N-Channel MOSFET Gate Driver
  • Number of Drivers: 2
  • Driven Configuration: Half-Bridge
  • Mounting Type: Through-Hole
  • Channel Type: Independent
  • Input Type: Non-Inverting
  • Supply Voltage: 3.3V to 20V
  • High Side Voltage (Max): 600V (Bootstrap)
  • Rise Time: 25ns
  • Fall Time: 17ns
  • Status: Obsolete (EOL)
