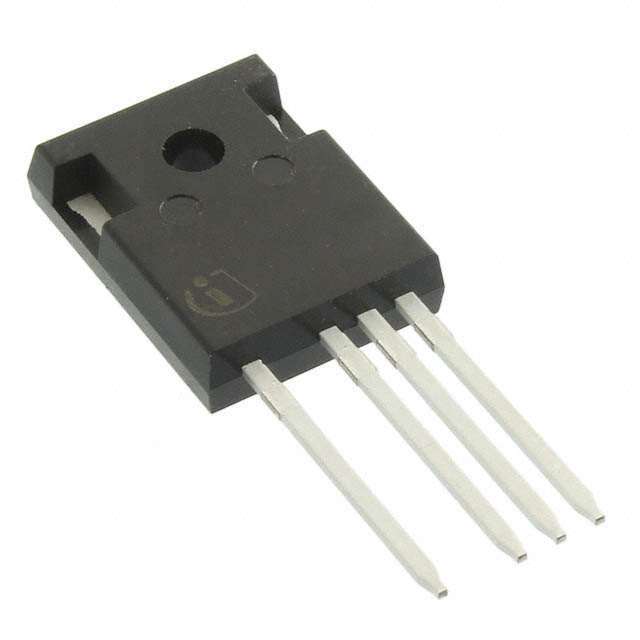

Same model may have multiple batches, images only for reference.
IKZ75N65EH5XKSA1
Same model may have multiple batches, images only for reference.

IKZ75N65EH5XKSA1

Part No IKZ75N65EH5XKSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBT 650V 90A W/DIO TO247-4
Datasheet
IKZ75N65EH5XKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 51 Weeks
Features IGBT - 650 V 90 A 395 W Through Hole PG-TO247-4
Manufacturer Infineon Technologies
Series TrenchStop™ 5
Package Tube
Operating Temperature Range -40°C ~ 175°C (TJ)
Mounting Through Hole
Package TO-247-4
Case / Package PG-TO247-4
Family Name IKZ75N65
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number IKZ75N65EH5XKSA1-5, 2156-IKZ75N65EH5XKSA1, SP001160046
Quantity per package 30
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 874501-IKZ75N65EH5XKSA1
Ultra Librarian 3D Model Ultra Librarian IKZ75N65EH5XKSA1 CAD Model

Description

The Infineon Technologies IKZ75N65EH5XKSA1 is an IGBT transistor that is designed for use in high power switching applications.

  • Series: TrenchStop™ 5
  • Power Rating: 395W (Max)
  • Collector Current: 90A
  • Operating Temperature: -40°C to 175°C
  • Package: TO-247-4
  • Packaging: Tube
  • Supply and Demand Status: Limited
  • Popularity: Medium
