The Infineon Technologies TrenchStop™ IGBT IKW30N60DTPXKSA1, part number 1277411, is a single component in the Discrete Semiconductor Products>Transistors - IGBTs - Single category.

• Package: Tube
• Standard Package: 30
• Power - Max: 200 W
• Reverse Recovery Time (trr): 76 ns
• Voltage - Collector Emitter Breakdown (Max): 600 V
• Current - Collector (Ic) (Max): 53 A
• Current - Collector Pulsed (Icm): 90 A
• Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 30A
• Switching Energy: 710µJ (on), 420µJ (off)
• Gate Charge: 130 nC
• Td (on/off) @ 25°C: 15ns/179ns
• Test Condition: 400V, 30A, 10.5Ohm, 15V
• Mounting Type: Through-Hole

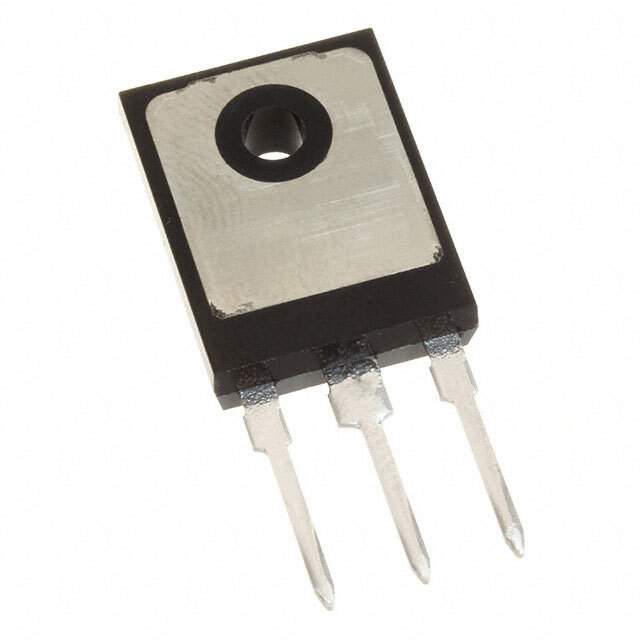

• Case: TO-247-3
• Supplier Device Package: PG-TO247-3
• Temperature Range - Operating: -40°C ~ 175°C (TJ)
• Status: Not for new designs
