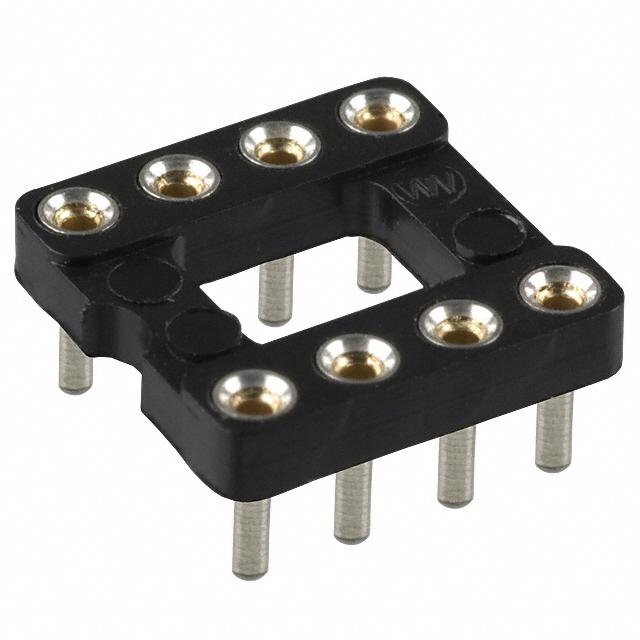

Same model may have multiple batches, images only for reference.

115-93-308-41-003000

Name: 115-93-308-41-003000
Brand: Mill-Max Manufacturing Corp.
SKU: 450817
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	115-93-308-41-003000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Sockets for ICs, Transistors
Description	CONN IC DIP SOCKET 8POS GOLD
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Packaging	Tube/Rail
Status	Active
Type	DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid)	8 (2 x 4)
Pitch - Mating	2.54mm
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Material - Mating	Beryllium Copper
Mounting	Through Hole
Features	Open Frame
Termination	Solder
Pitch - Post	0.100" (2.54mm)
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Post	200μin (5.08μm)
Contact Material - Post	Brass Alloy
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating	-55°C to 125°C
Termination Post Length	0.108" (2.74mm)
Current Rating	3A
Win Source Part Number	1035817-115-93-308-41-003000
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	50
Ultra Librarian 3D Model	Ultra Librarian 115-93-308-41-003000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. DIP connector is designed to provide a reliable connection for electronic components.

Row Spacing: 0.3 inches (7.62mm)
Design: open frame
Termination: solder
Current Rating: 3A
Housing Material: polycyclohexylenedimethylene terephthalate (PCT) and polyester
Positions/Pins: 8 (2 x 4 grid)
Mating Pitch: 2.54mm
Contact Finish: gold with a thickness of 30μin (0.76μm)
Contact Material: beryllium copper
Post Pitch: 0.100 inches (2.54mm)
Post Contact Finish: tin-lead with a thickness of 200μin (5.08μm)
Post Contact Material: brass alloy
Termination Post Length: 0.108 inches (2.74mm)
Temperature Range: -55°C to 125°C
