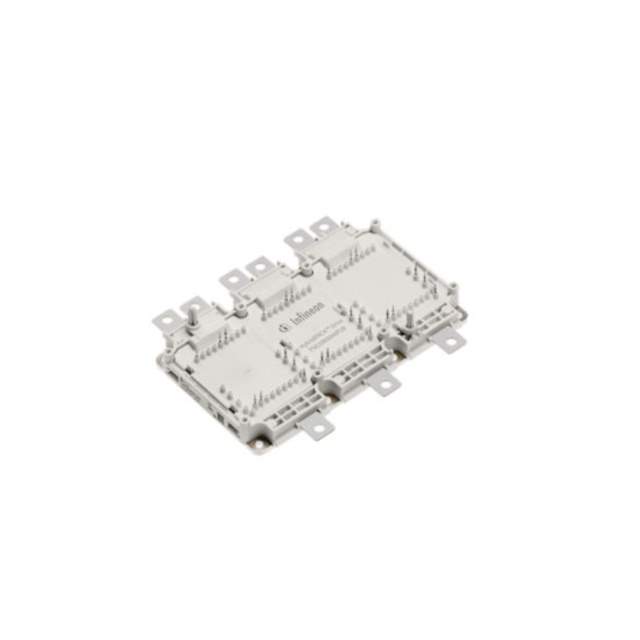

FS820R08A6P2BBPSA1 Real Image
Same model may have multiple batches, images only for reference.

FS820R08A6P2BBPSA1

Part No FS820R08A6P2BBPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MODULE PACK DRV HYBRIDD-1 / IGBT Module Trench Field Stop Three Phase Inverter 750 V 450 A 714 W Chassis Mount AG-HYBRIDD-2
Datasheet
FS820R08A6P2BBPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series HybridPACK™
Package Tray
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 750 V
Current - Collector (Ic) (Max) 450 A
Power - Max 714 W
Vce(on) (Max) @ Vge, Ic 1.35V @ 15V, 450A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 80 nF @ 50 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package AG-HYBRIDD-2
Base Product Number FS820R08
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP001499708
Standard Package 6
Win Source Part Number 1224584-FS820R08A6P2BBPSA1
Ultra Librarian 3D Model Ultra Librarian FS820R08A6P2BBPSA1 CAD Model

Description

The Infineon Technologies FS820R08A6P2BBPSA1 is a high-quality three-phase inverter module that is designed for use in a wide range of electronic devices.

  • Series: HybridPACK™
  • Input Capacitance: 80 nF @ 50 V
  • Voltage Collector Emitter Breakdown: 750 V
