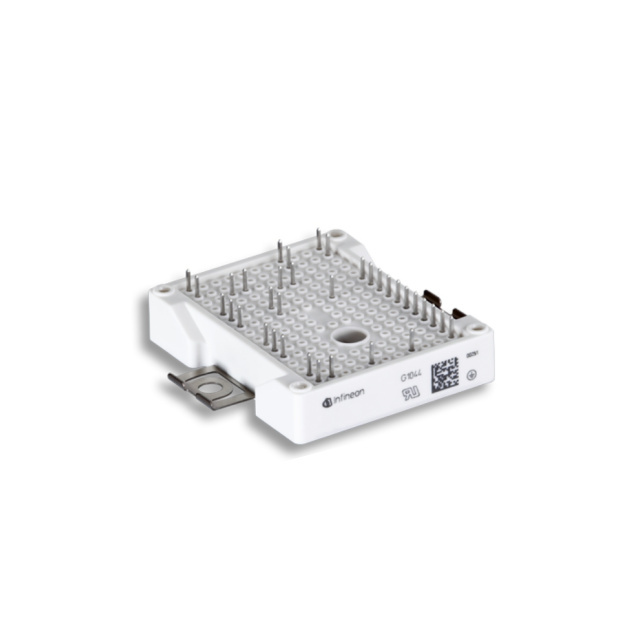

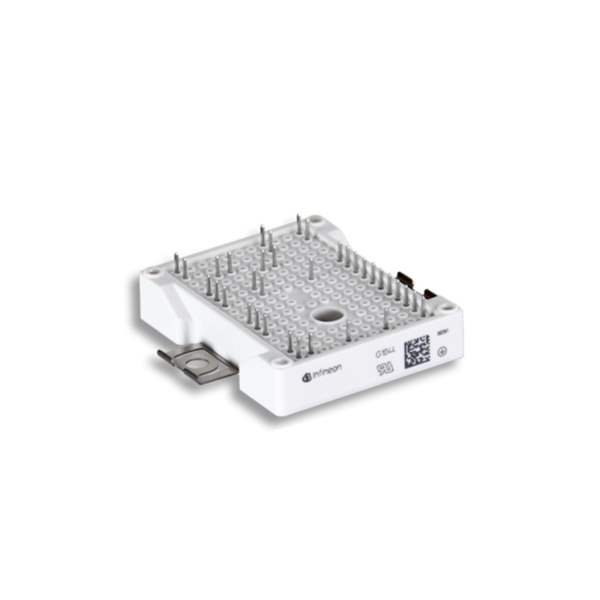

FP25R12W2T4PB11BPSA1 Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

FP25R12W2T4PB11BPSA1

Part No FP25R12W2T4PB11BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT Module Trench Field Stop Three Phase Inverter 1200 V 50 A Chassis Mount Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
Series EasyPIM™
Packaging Tray
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 50 A
Vce(on) (Max) @ Vge, Ic 2.25V @ 15V, 25A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 1.45 nF @ 25 V
Input Three Phase Bridge Rectifier
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FP25R12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1481756-FP25R12W2T4PB11BPSA1
Ultra Librarian 3D Model Ultra Librarian FP25R12W2T4PB11BPSA1 CAD Model
