Same model may have multiple batches, images only for reference.

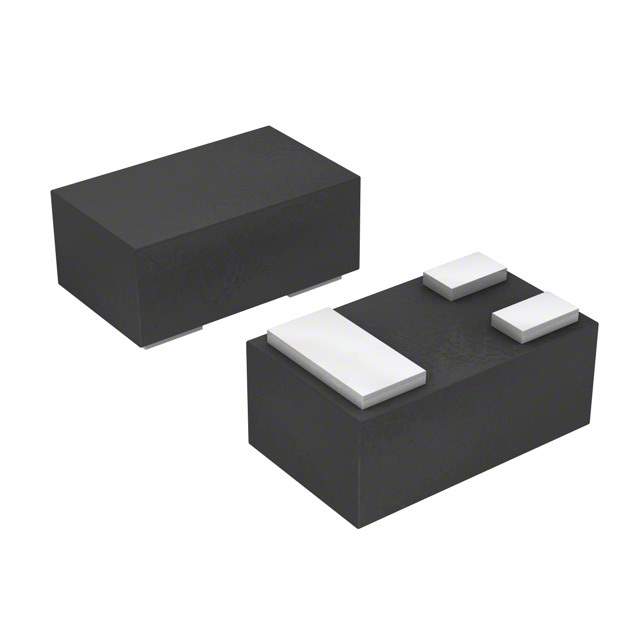

ESD8V0L2B-03L E6327 Real Image
Same model may have multiple batches, images only for reference.

ESD8V0L2B-03L E6327

Part No ESD8V0L2B-03L E6327
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 22VWM 26VC TSLP3-1
Datasheet
ESD8V0L2B-03L E6327 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Infineon Technologies
Packaging Cut Reel
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 2
STAND-OFF Voltage (Vwm) 22V (Max)
Minimum Breakdown Voltage 23V (Typ)
Max Clamping Voltage 26V (Typ)
Peak Pulse Current(Ippm) 1A (8/20μs)
Applications General Purpose
Capacitance @ Frequency 4pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TSLP-3
Win Source Part Number 1037117-ESD8V0L2B-03L E6327
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ESD8V0L2B-03L E6327 CAD Model

Description

The Infineon Technologies 1037117-ESD8V0L2B-03L E6327 is a zener diode that is designed for use in a variety of applications, including general purpose circuit protection.

  • Stand-off Voltage (Vwm): 22V (max)
  • Breakdown Voltage: 23V (typ)
  • Max Clamping Voltage: 26V (typ)
  • Peak Pulse Current (Ippm): 1A (8/20μs)
  • Capacitance @ Frequency: 4pF @ 1MHz
  • Package: PG-TSLP-3
  • Status: obsolete (EOL)
  • Popularity: high
