Same model may have multiple batches, images only for reference.

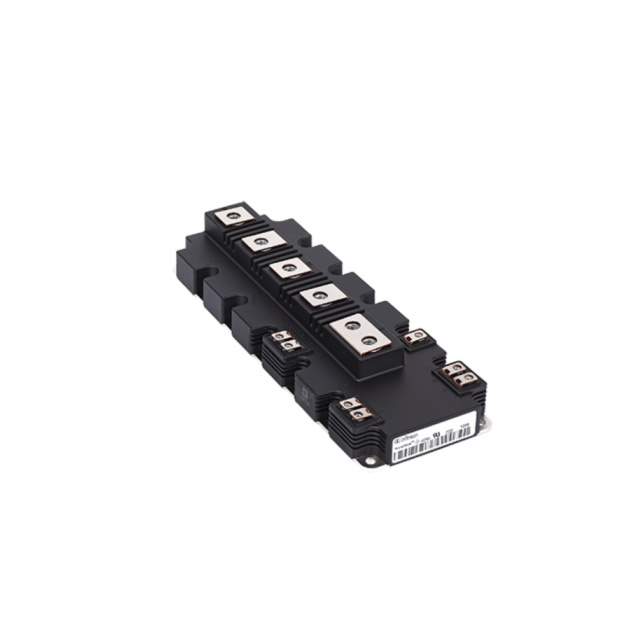

DF1000R17IE4BOSA1 Real Image
Same model may have multiple batches, images only for reference.

DF1000R17IE4BOSA1

Part No DF1000R17IE4BOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MODULE 1700V 6250W / IGBT Module Single 1700 V 6250 W Chassis Mount Module
Datasheet
DF1000R17IE4BOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series PrimePACK™3
Package Bulk
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 1700 V
Power - Max 6250 W
Vce(on) (Max) @ Vge, Ic 2.45V @ 15V, 1000A
Current - Collector Cutoff (Max) 5 mA
Input Capacitance (Cies) @ Vce 81 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number DF1000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP000614736,DF1000R17IE4,2156-DF1000R17IE4BOSA1-448,DF1000R17IE4-ND
Standard Package 2
Win Source Part Number 1029891-DF1000R17IE4BOSA1
Ultra Librarian 3D Model Ultra Librarian DF1000R17IE4BOSA1 CAD Model

Description

The Infineon Technologies DF1000R17IE4BOSA1 is a single configuration IGBT module from the PrimePACK™3 series.

  • Series: PrimePACK™3
  • Power: 6250 W
  • Voltage Collector Emitter Breakdown: 1700 V
  • Input: standard
  • IGBT Type: not specified
  • Features: NTC thermistor
  • Mounting Type: chassis mount
  • Package/Case: module
  • Temperature Range: -40°C to 150°C
  • Cross-reference: FF150R17KE4HOSA1, APTGT50SK170T1G, BSM150GB170DLC, FS150R17KE3G, APTGT50A170T1G and APTGT100DU170TGDF1000R17IE4
  • MSL Level: 1 (unlimited)
  • REACH: unaffected
  • HTSUS Code: 8541.29.0095
