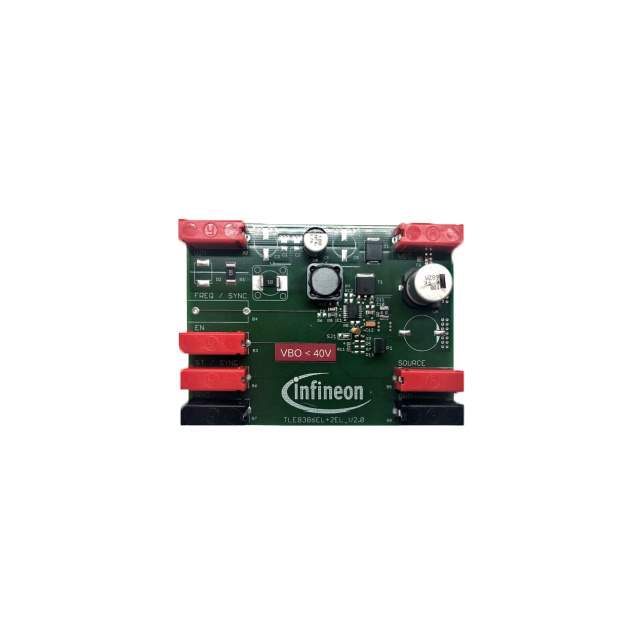

DEMOBOARDTLE83862ELTOBO1 Real Image
Same model may have multiple batches, images only for reference.

DEMOBOARDTLE83862ELTOBO1

Part No DEMOBOARDTLE83862ELTOBO1
Manufacturer Infineon Technologies
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description DEMOBOARD TLE8386-2EL / TLE8386-2EL series DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Infineon Technologies
Package Box
Main Purpose DC/DC, Step Up
Outputs and Type 1, Non-Isolated
Voltage - Output 27V
Regulator Topology Boost
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part TLE8386-2EL
Base Product Number DEMOBOARDTLE83862
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Other Names 448-DEMOBOARDTLE83862ELTOBO1,SP000931428
Standard Package 1
Win Source Part Number 1041178-DEMOBOARDTLE83862ELTOBO1
Ultra Librarian 3D Model Ultra Librarian DEMOBOARDTLE83862ELTOBO1 CAD Model

Description

The 1041178-DEMOBOARDTLE83862ELTOBO1 is a development board kit designed to evaluate the TLE8386-2EL integrated circuit (IC) from Infineon Technologies.

  • Topology: boost regulator
  • Output Type: Non-Isolated
  • Voltage Output: 27V
  • Application: DC/DC step-up
  • Package Includes: One board
  • Shipping Package: Box
  • REACH Status: REACH Unaffected
  • HTSUS: 8543.70.9860
  • Also Known As: 448-DEMOBOARDTLE83862ELTOBO1 and SP000931428
