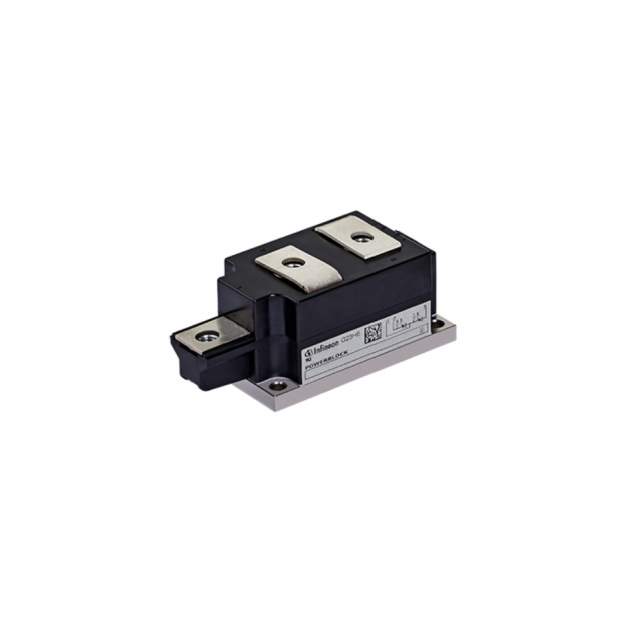

The DD285N02K is a fast switching diode from Infineon Technologies. It is designed for applications requiring high-speed rectification and low switching losses. This diode is part of a series designed for efficiency and reliability in demanding power electronic systems. These diodes are commonly found in applications requiring rapid switching and efficient energy conversion.

Applications

• Freewheeling diodes in inverter circuits: Provides a path for current to flow when switching devices are turned off, protecting them from voltage spikes.
• Snubber circuits: Used to suppress voltage transients and reduce switching losses in power electronic circuits.
• High-frequency rectifiers: Converts AC voltage to DC voltage at high frequencies, commonly used in switched-mode power supplies.
• Welding Equipment: Rectification stages in welding machines to provide DC current for welding.
• Induction heating systems: Rectifies the AC power to supply the induction heating coil with DC or pulsed DC current.

Features

• Fast reverse recovery time: Minimizes switching losses and improves efficiency.
• High surge current capability: Can withstand high surge currents without damage.
• Low forward voltage drop: Reduces power dissipation and improves overall efficiency.
• Electrically isolated base plate: Simplifies mounting and improves thermal performance.
• High blocking voltage: Allows operation in high-voltage circuits.

Benefits

• Increased efficiency: Fast recovery and low forward voltage drop lead to high energy efficiency.
• Improved reliability: High surge current capability provides robust performance under fault conditions.
• Reduced switching losses: Fast recovery minimizes switching losses, reducing heat generation and improving overall system performance.
• Simplified mounting: Electrically isolated base plate simplifies mounting and reduces the need for additional insulation.
• Extended lifespan: Reduction in power loss and heat leads to prolonged lifespan of the equipment.

Additional Details

The DD285N02K is typically mounted using screws and a thermal interface material to ensure proper thermal contact with a heatsink. It's essential to follow the manufacturer's recommended mounting procedures for optimal performance. This diode is used with appropriate gate drive circuitry and protection against overvoltage and overcurrent conditions. The specific maximum ratings and electrical characteristics are detailed in the official Infineon datasheet for this part number. Always consult the datasheet for detailed specifications and application guidelines, ensuring that the operating conditions are within the specified limits for optimal performance and longevity.
