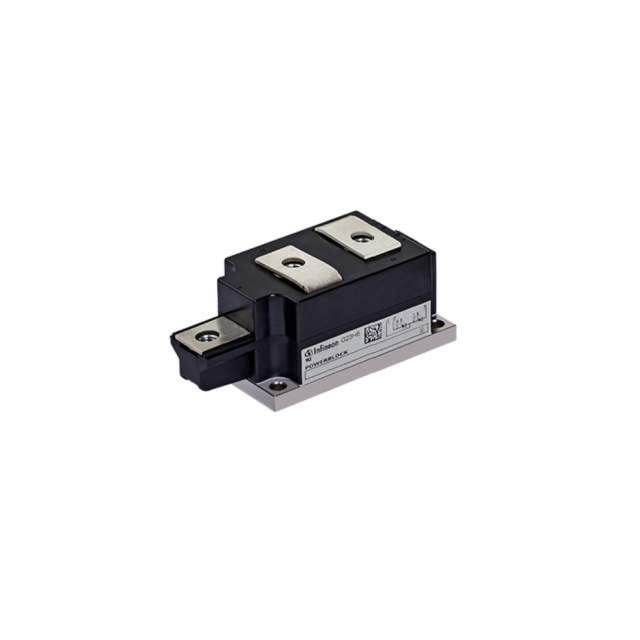

DD261N20KHPSA1 Real Image1 DD261N20KHPSA1 Real Image2
Same model may have multiple batches, images only for reference.
DD261N20KHPSA1 Real Image1 DD261N20KHPSA1 Real Image2
DD261N20KHPSA1 Real Image1 DD261N20KHPSA1 Real Image2
Same model may have multiple batches, images only for reference.

DD261N20KHPSA1

Part No DD261N20KHPSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE GP 2000V 260A / Diode Array 1 Pair Series Connection Standard 2000 V 260A Chassis Mount Module
Datasheet
DD261N20KHPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Infineon Technologies
Package Bulk
Product Status Last Time Buy
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 2000 V
Current - Average Rectified (Io) (per Diode) 260A
Voltage - Forward (Vf) (Max) @ If 1.42 V @ 800 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 40 mA @ 2000 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number DD261N20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SP000102061,DD261N20K-ND,DD261N20K
Standard Package 3
Win Source Part Number 1221307-DD261N20KHPSA1
Ultra Librarian 3D Model Ultra Librarian DD261N20KHPSA1 CAD Model

Description

The DD261N20KHPSA1 is a discrete semiconductor product used in diodes-rectifiers-arrays.

  • Voltage: 2000V
  • Current: 260A
  • Package: Bulk
  • Standard Package: Three
  • Diode Type: Standard
  • Diode Configuration: One pair series connection
  • Operating Temperature: -40°C to 150°C
  • Mounting Type: Chassis mount
  • Description: A reliable and durable product suitable for various applications.
