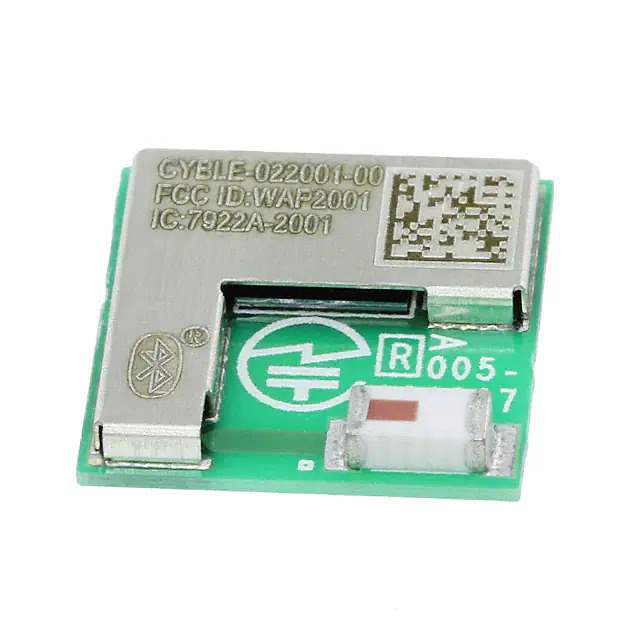

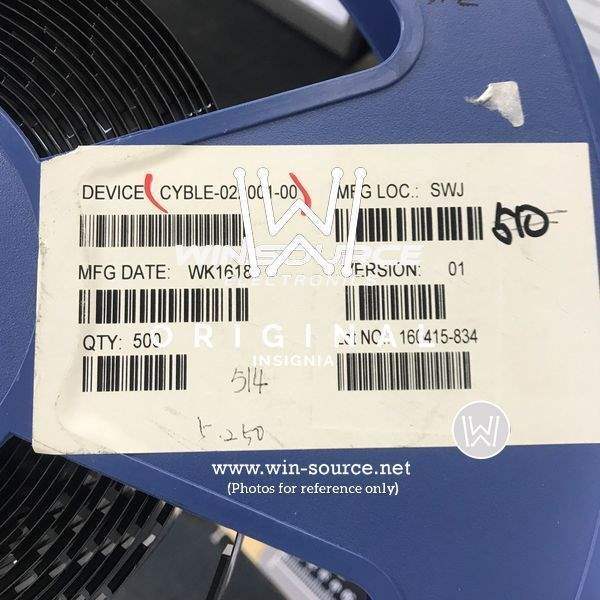

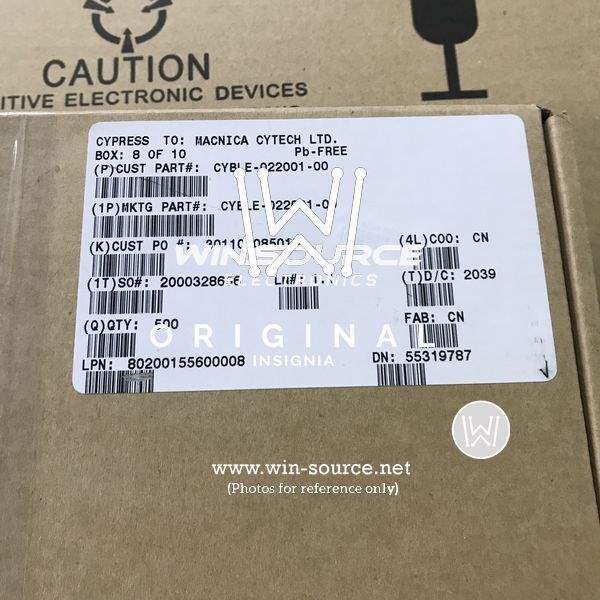

CYBLE-022001-00 Cypress Semiconductor Corp CYBLE-022001-00 Real Image YBLE-022001-00 label picture CYBLE-022001-00 real image CYBLE-022001-00 label picture 2
Same model may have multiple batches, images only for reference.
CYBLE-022001-00 Cypress Semiconductor Corp CYBLE-022001-00 Real Image YBLE-022001-00 label picture CYBLE-022001-00 real image CYBLE-022001-00 label picture 2
CYBLE-022001-00 Cypress Semiconductor Corp CYBLE-022001-00 Real Image YBLE-022001-00 label picture CYBLE-022001-00 real image CYBLE-022001-00 label picture 2
Same model may have multiple batches, images only for reference.

CYBLE-022001-00

Part No CYBLE-022001-00
Manufacturer Infineon Technologies
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH CHIP SMD / Bluetooth Bluetooth v4.1 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Datasheet
CYBLE-022001-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Infineon Technologies
Series EZ-BLE™ PRoC™
Package Tape & Reel
Product Status Active
Programmable Not Verified
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Frequency 2.4GHz
Data Rate 1Mbps
Power - Output 3dBm
Sensitivity -91dBm
Serial Interfaces I2C, SPI, UART
Antenna Type Integrated, Chip
Memory Size 128kB Flash, 16kB SRAM
Voltage - Supply 1.8V ~ 4.5V
Current - Receiving 16.4mA
Current - Transmitting 15.6mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 21-SMD Module
Base Product Number CYBLE-022001
Standard Package 500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8517.62.0090
Win Source Part Number 583211-CYBLE-022001-00
Ultra Librarian 3D Model Ultra Librarian CYBLE-022001-00 CAD Model

Description

The CYBLE-022001-00 is an RF transceiver module and modem from the EZ-BLE™ PRoC™ series.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.1
  • Data Rate: 1Mbps
  • Memory: 128kB Flash and 16kB SRAM
  • Antenna: Integrated Chip Antenna
  • Serial Interfaces: I2C, SPI, and UART
  • Temperature Range: -40°C to 85°C
