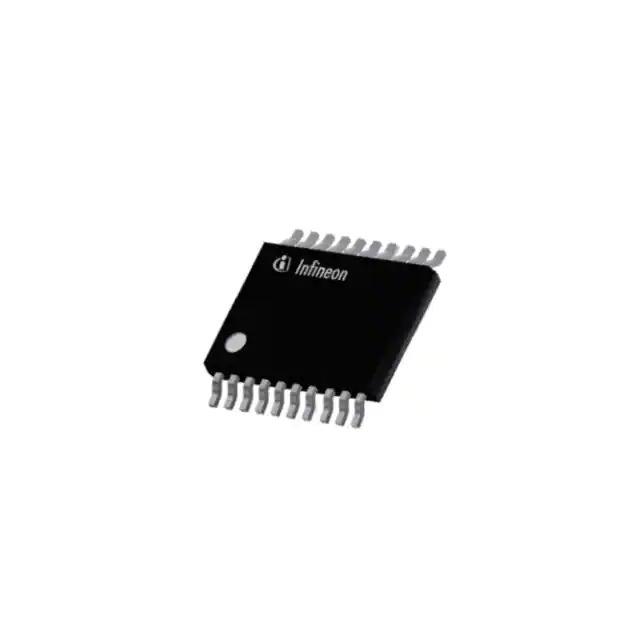

BTS72004EPAXUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BTS72004EPAXUMA1

Part No BTS72004EPAXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC 4CH HIGH SIDE SWITCH / Power Switch/Driver 1:1 N-Channel 1A PG-TSDSO-14
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100, PROFET®
Package Tape & Reel
Product Status Active
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 6V ~ 18V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 1A
Rds On (Typ) 66.5mOhm
Input Type Non-Inverting
Features -
Fault Protection Over Current, Over Voltage, Short Circuit, UVLO
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TSDSO-14
Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Base Product Number BTS7200
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1356140-BTS72004EPAXUMA1
Ultra Librarian 3D Model Ultra Librarian BTS72004EPAXUMA1 CAD Model

Description

The BTS72004EPAXUMA1 is a power distribution switch and load driver integrated circuit from Infineon Technologies.

  • Series: Automotive, AEC-Q100, PROFET
  • Package: 14-TSSOP
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 150°C
  • Maximum Output Current: 1A
  • Output Configuration: High Side
  • Fault Protection: Over Current, Over Voltage, Short Circuit, UVLO
  • Type: General Purpose Switch
  • Voltage - Load: 6V to 18V
