Same model may have multiple batches, images only for reference.

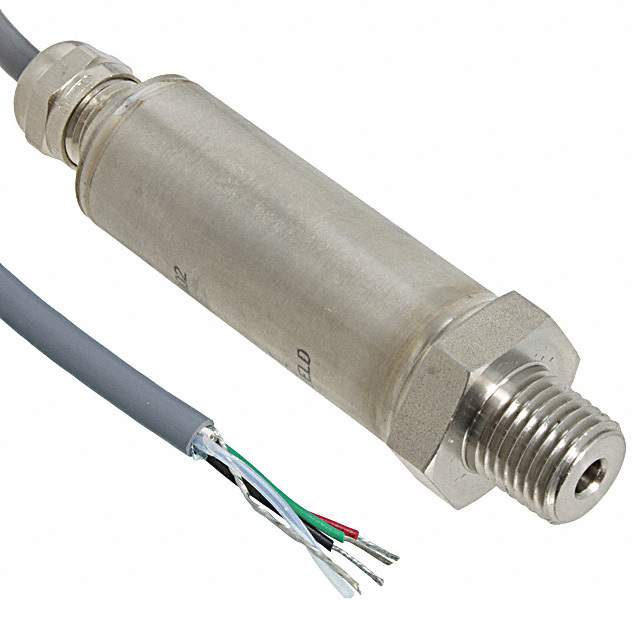

SPT4V0300PG5W02 Real Image
Same model may have multiple batches, images only for reference.

SPT4V0300PG5W02

Part No SPT4V0300PG5W02
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 300PSIG STEEL 1-5 VDC OUT
Datasheet
SPT4V0300PG5W02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers - Industrial
Mfr Honeywell Sensing and Productivity Solutions
Series SPT
Applications Industrial Automation
Pressure Type Vented Gauge
Operating Pressure 300PSI (2068.43kPa)
Output Type Wheatstone Bridge
Output 1 V ~ 5 V
Accuracy ±0.25%
Voltage - Supply 12.5V ~ 24V
Port Size Male - 1/4" (6.35mm) NPT
Port Style Threaded
Features Temperature Compensated
Termination Style Cable 2'
Maximum Pressure 900PSI (6205.28kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case Cylinder
Base Product Number SPT4V0300
Other Names 287-1094,287-1094R,2266-SPT4V0300PG5W02
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234858-SPT4V0300PG5W02
Ultra Librarian 3D Model Ultra Librarian SPT4V0300PG5W02 CAD Model

Description

The Honeywell SPT4V0300PG5W02 is an industrial pressure sensor with temperature compensation features.

  • Output Type: Wheatstone Bridge
  • Output: 1 V ~ 5 V
  • Pressure Type: vented gauge
  • Operating Pressure: 300PSI (2068.43kPa)
  • Port Size: male 1/4" (6.35mm) NPT
  • Port Style: threaded
  • Maximum Pressure: 900PSI (6205.28kPa)
  • Voltage Supply: 12.5V ~ 24V
  • Temperature Range: -40°C ~ 85°C
  • Package/Case: cylinder
  • Supplier Device Package: -
  • Suitable for: industrial automation applications
  • MSL level: 1 (Unlimited)
  • HTSUS: 9026.20.4000
  • Other Names: 287-1094, 287-1094R, and 2266-SPT4V0300PG5W02
  • Base Product Number: SPT4V0300
