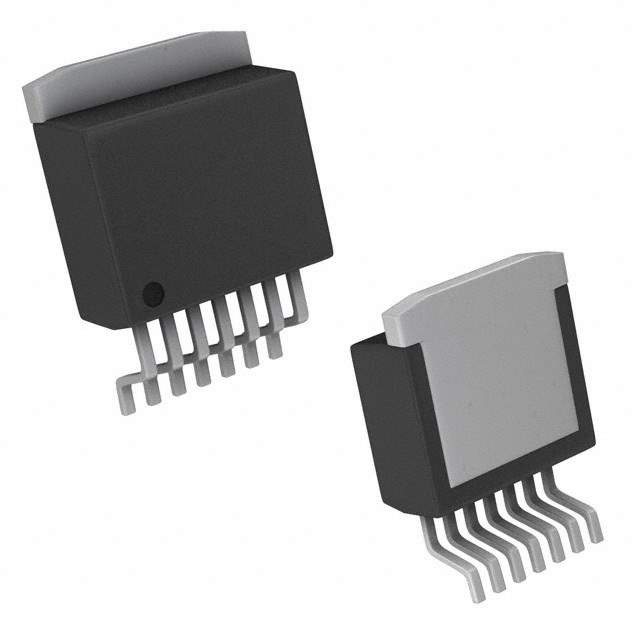

The BTN8960TA is a NovalithIC™ half-bridge driver from Infineon Technologies. It's part of a family of fully integrated high-current half-bridge drivers designed for various automotive and industrial applications. This device combines a high-side P-channel MOSFET and a low-side N-channel MOSFET with a driver IC in one package, providing efficient and robust motor control.

Applications:

• Automotive Motor Control: Including window lift, sunroof, seat adjustment, and fuel pump control.
• Industrial Motor Control: Such as robotics, power tools, and industrial automation equipment.
• Valve Control: Used in hydraulic and pneumatic systems.
• DC Motor Control: For various brushed DC motor applications requiring high current and PWM control.

Features:

• Half-Bridge Driver: Integrates high-side P-channel MOSFET and low-side N-channel MOSFET.
• NovalithIC™ Technology: Combines driver IC with power MOSFETs for enhanced performance and reliability.
• Logic Level Inputs: Compatible with 3.3V and 5V microcontrollers.
• Overcurrent Protection: Built-in current limitation and shutdown for protection against overloads.
• Overtemperature Protection: Thermal shutdown feature to prevent damage from excessive heat.
• Short Circuit Protection: Protects the device and the load from short circuit conditions.
• Diagnostic Feedback: Provides status information to the microcontroller for fault detection and system monitoring.
• PWM Capability: Supports Pulse Width Modulation for precise motor speed control.
• Low RDS(on): Minimizes power dissipation and improves efficiency.

Benefits:

• Reduced System Size: Integration of driver IC and MOSFETs saves board space.
• Improved Efficiency: Low RDS(on) minimizes power losses and heat generation.
• Enhanced Reliability: Built-in protection features ensure robust operation and prevent damage.
• Simplified Design: Easy to use with logic-level inputs and diagnostic feedback.
• Cost-Effective: Integration reduces the number of external components required.
• Precise Motor Control: PWM capability allows for accurate speed and torque control.

Additional Details:

The BTN8960TA typically operates with a supply voltage range of 5V to 42V. It features a current limit that protects the device from overcurrent conditions. The diagnostic feedback provides information about the device status, such as overtemperature, overcurrent, and short circuit conditions. The device is typically controlled using PWM signals from a microcontroller, allowing for precise control of the motor speed and direction. It's commonly available in a PG-HSOP-12 package.
