The BTM7750GP is an integrated full-bridge and half-bridge driver from Infineon Technologies, designed to control DC motors in automotive and industrial applications. This intelligent power switch combines high-side and low-side MOSFETs with control and diagnostic circuitry, offering a robust and efficient solution for motor control.

Applications:

• Automotive Motor Control: Used in electric power steering (EPS), electronic stability control (ESC), anti-lock braking systems (ABS), and transmission control units.
• Industrial Automation: Employed in robotics, conveyor systems, and servo drives for precise motor control.
• Power Door Systems: Used in automotive power door latches, power sliding doors, and tailgate systems.
• HVAC Systems: Integrated into automotive and industrial HVAC systems for controlling fans, blowers, and dampers.
• General Purpose Motor Control: Suitable for a wide range of DC motor control applications requiring high efficiency and robust protection.

Features

• Integrated Full-Bridge and Half-Bridge Drivers: Provides a complete motor control solution in a single package, reducing component count and board space.
• Low RDS(on) MOSFETs: Minimizes conduction losses, resulting in high efficiency and reduced heat dissipation.
• Overcurrent Protection: Protects the device and the motor from damage due to overcurrent conditions.
• Overtemperature Protection: Prevents thermal damage by shutting down the device when the junction temperature exceeds a safe limit.
• Undervoltage Lockout (UVLO): Ensures proper operation by disabling the outputs when the supply voltage falls below a specified threshold.
• Diagnostic Feedback: Provides status information about the device, including fault conditions and operating status.
• PWM Control: Allows for precise motor speed and torque control using pulse-width modulation (PWM).
• Cross-Current Protection: Prevents simultaneous conduction of high-side and low-side MOSFETs, avoiding shoot-through currents.

Benefits

• High Efficiency: Low RDS(on) MOSFETs minimize power dissipation, resulting in higher efficiency and reduced energy consumption.
• Robust Protection: Overcurrent, overtemperature, and undervoltage protection features ensure reliable operation and prevent damage to the device and the motor.
• Simplified Design: Integrated functionality reduces component count and simplifies board layout, saving space and cost.
• Precise Motor Control: PWM control enables accurate speed and torque regulation, improving system performance.
• Improved System Reliability: Comprehensive diagnostic feedback allows for early detection of fault conditions, preventing catastrophic failures.

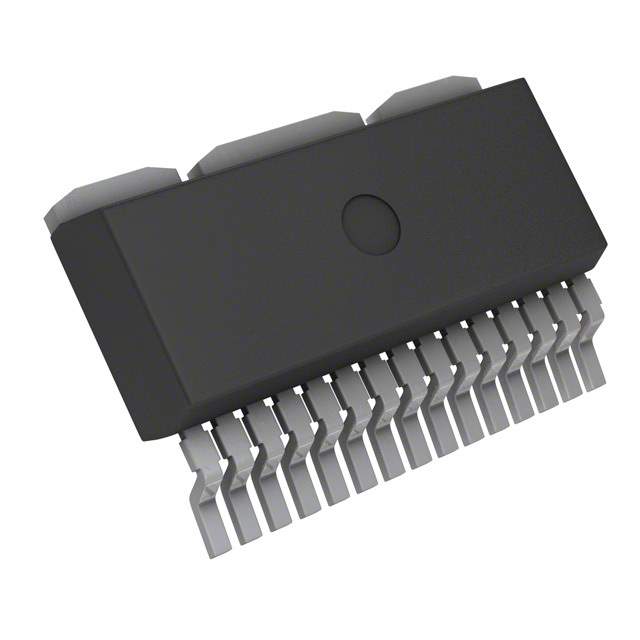

The BTM7750GP operates typically from a supply voltage range of 5.5V to 40V. It supports PWM frequencies up to 25 kHz, offering flexible control options. The device is typically packaged in a PG-DSO-20 package, ensuring good thermal performance. This combination of features makes the BTM7750GP an ideal solution for demanding motor control applications in automotive and industrial environments.
