Same model may have multiple batches, images only for reference.

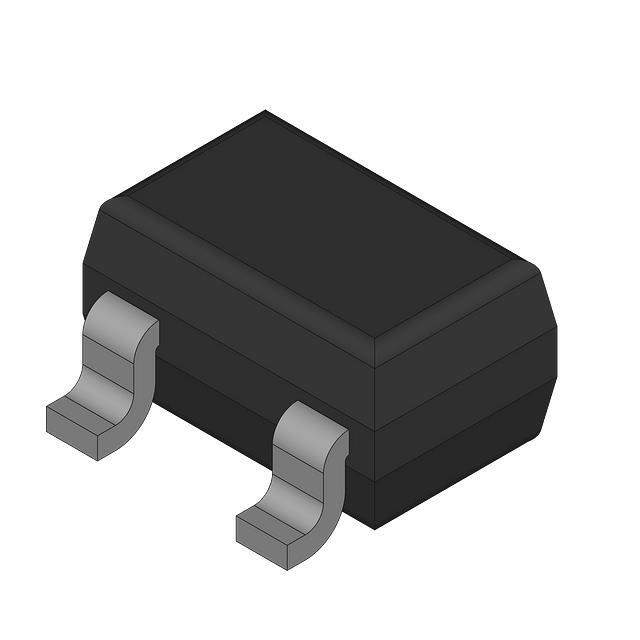

BAT5404WH6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BAT5404WH6327XTSA1

Part No BAT5404WH6327XTSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT323
Datasheet
BAT5404WH6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 800mV @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package PG-SOT323-3
Win Source Part Number 100727-BAT5404WH6327XTSA1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BAT5404WH6327XTSA1 CAD Model

Description

Product Overview

The BAT5404WH6327XTSA1 is a versatile Schottky diode ideal for high-speed and low-power electronic applications with its efficient design and reliability.

Features and Benefits

  • Rapid switching capabilities for enhanced performance.
  • Low junction capacitance minimizing signal loss.
  • Enhanced thermal performance for better reliability.
  • Miniature form factor for flexible design integration.

Applications

  • Power management systems
  • Switching power supplies
  • Forward and reverse polarity protection
  • RFID systems

Additional Details

The BAT5404WH6327XTSA1's design supports optimization of power usage and heat dissipation, offering significant advantages in power-sensitive and compact applications.
