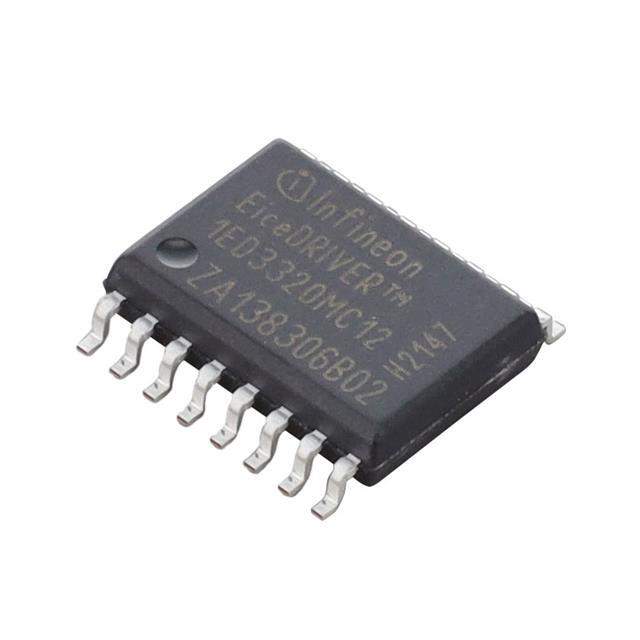

1ED3320MC12NXUMA1 Real Image
Same model may have multiple batches, images only for reference.

1ED3320MC12NXUMA1

Part No 1ED3320MC12NXUMA1
Manufacturer Infineon Technologies
Catalog Isolators - Gate Drivers
Description ISOLATED GATE DRIVER / 5A, 5A Gate Driver Magnetic Coupling 5700Vrms 1 Channel PG-DSO-16-40
Datasheet
1ED3320MC12NXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Isolators - Gate Drivers
Mfr Infineon Technologies
Series EiceDriver™
Package Tape & Reel
Technology Magnetic Coupling
Number of Channels 1
Voltage - Isolation 5700Vrms
Common Mode Transient Immunity (Min) 300kV/µs
Propagation Delay tpLH / tpHL (Max) 84ns, 92ns
Rise / Fall Time (Typ) 15ns, 15ns
Current - Output High, Low 3.3A, 6A
Current - Peak Output 5A, 5A
Voltage - Output Supply 40V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package PG-DSO-16-40
Approval Agency UL
Base Product Number 1ED332
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349314-1ED3320MC12NXUMA1
Ultra Librarian 3D Model Ultra Librarian 1ED3320MC12NXUMA1 CAD Model

Description

The EiceDriver™ 1ED3320MC12NXUMA1 is a gate driver isolator from the isolators category of isolators.

  • Category: Isolators
  • Technology: Magnetic Coupling
  • Current - Output High, Low: 3.3A, 6A
  • Rise/Fall Time (Typ): 15ns, 15ns
  • Number of Channels: 1
  • Voltage - Isolation: 5700Vrms
  • Common Mode Transient Immunity (Min): 300kV/µs
  • Propagation Delay tpLH / tpHL (Max): 84ns, 92ns
  • Current - Peak Output: 5A, 5A
  • Voltage Range: 40V
  • Package: 16-SOIC (0.154", 3.90mm Width)
  • Operating Temperature: -40°C ~ 125°C (TA)
  • ECCN: EAR99
  • REACH: Unaffected
