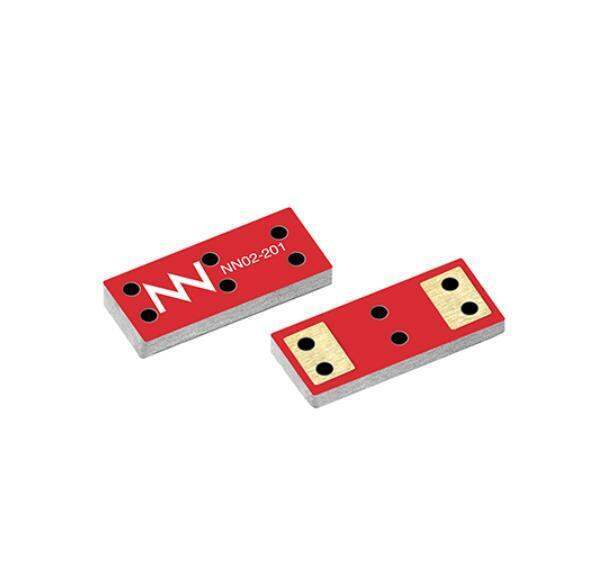

NN02-201 Ignion
Same model may have multiple batches, images only for reference.

NN02-201

Part No NN02-201
Manufacturer Ignion (formerly Fractus)
Catalog RF Antennas
Description ONE MXTEND MULTIBAND ANTENNA
Datasheet
NN02-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203568-NN02-201
Manufacturer Ignion
Category RF and Wireless RF Antennas
Series ONE mXTEND™
Product Status Active
RF Family/Standard Cellular
Frequency Group Ultra Wide Band
Frequency Range 824MHz ~ 7.125GHz
Mounting Type Surface Mount
Height (Max) 0.039" (1.00mm)
Ultra Librarian 3D Model Ultra Librarian NN02-201 CAD Model

Description

The ONE mXTEND™ antenna booster, with a volume of only 21mm3, is the smallest chip of the Virtual Antenna™ family. This miniature, multipurpose and ultra slim component is designed to provide multiband connectivity at cellular IoT, including connectivity within several 2G, 3G, 4G and 5G bands, but also for other regions of the spectrum, such as Wi-Fi 6E.
