Same model may have multiple batches, images only for reference.

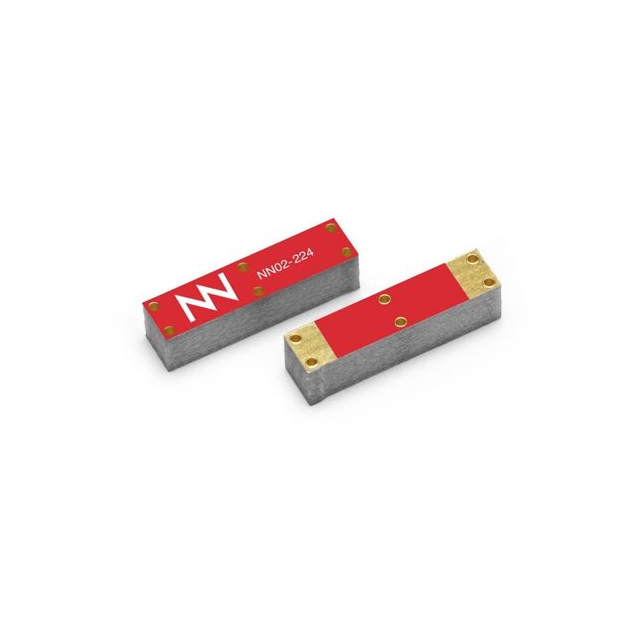

NN02-224 Real Image
Same model may have multiple batches, images only for reference.

NN02-224

Part No NN02-224
Manufacturer Ignion (formerly Fractus)
Catalog RF Antennas
Description RUN MXTEND MULTIBAND ANTENNA
Datasheet
NN02-224 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000510-NN02-224
Win Source Part Number Cross
Manufacturer Ignion
Category RF and Wireless RF Antennas
Series RUN mXTEND™
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
RF Family/Standard Cellular
Frequency Group Ultra Wide Band
Frequency Range 824MHz ~ 5.875GHz
Antenna Type Chip
Number of Bands 14
Ultra Librarian 3D Model Ultra Librarian NN02-224 CAD Model

Description

The Ignion RUN mXTEND™ RF Antenna is a chip-type antenna with a frequency range of 824MHz to 5.875GHz.

  • Antenna Type: Chip
  • Series: RUN mXTEND™
  • Frequency Range: 824MHz to 5.875GHz
  • Bands: 14
  • Frequency Group: Ultra-Wideband
  • RF Family/Standard: Cellular
  • Packaging: Tape and Reel or Cut Tape and Digi-Reel™
  • Product Status: Active
