Same model may have multiple batches, images only for reference.

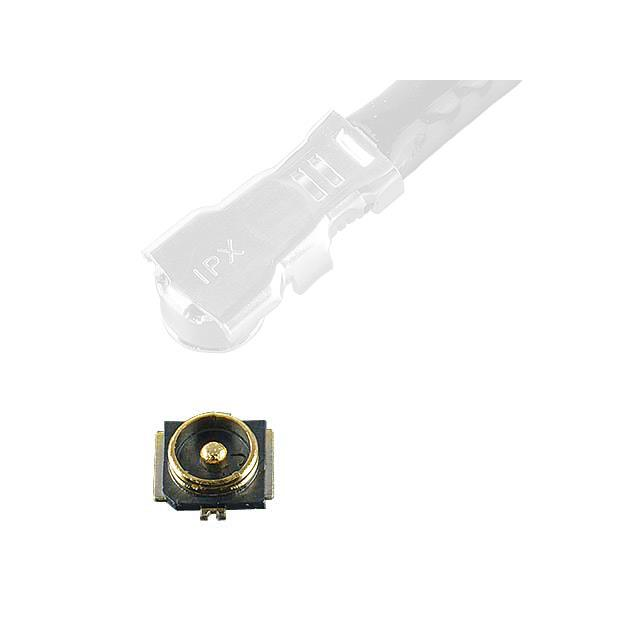

20579-001E Real Image
Same model may have multiple batches, images only for reference.

20579-001E

Part No 20579-001E
Manufacturer I-Pex
Catalog Coaxial Connectors (RF) - Assemblies
Description MHF 4L RECEPTACLE / IPEX MHF4 Connector Receptacle, Male Pin 50Ohm Surface Mount Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr I-PEX
Series MHF® 4L
Package Tape & Reel
Connector Style IPEX MHF4
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount
Fastening Type Snap-On
Frequency - Max 12 GHz
Number of Ports 1
Housing Color Black
Center Contact Material Brass
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 90°C
Voltage Rating 60 V
Mating Cycles 30
Base Product Number 20579
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1350316-20579-001E
Ultra Librarian 3D Model Ultra Librarian 20579-001E CAD Model

Description

The I-Pex MHF® 4L connector is a male pin receptacle with a snap-on fastening type.

  • Voltage Rating: 60V
  • Frequency Range: Up to 12 GHz
  • Housing Color: Black
  • Mounting Type: Surface Mount
  • Impedance: 50Ohm
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Dielectric Material: Liquid Crystal Polymer (LCP)
  • Termination: Solder
  • Standard Package: 10,000
