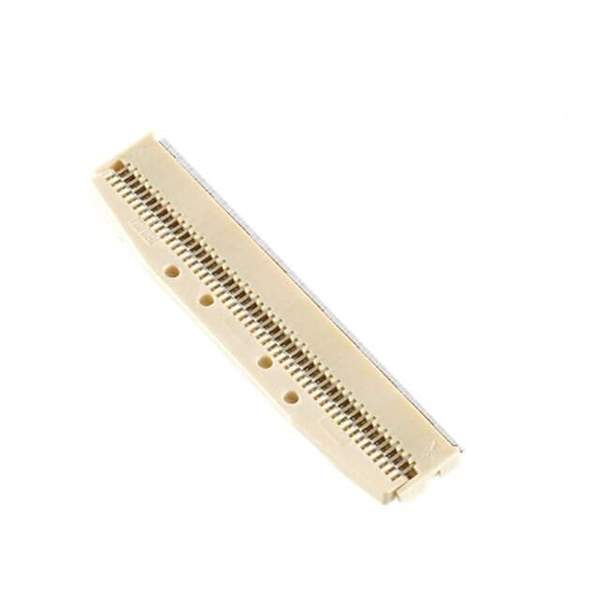

20538-033E-01

Name: 20538-033E-01
Brand: I-Pex
SKU: 1348109
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	20538-033E-01
Manufacturer	I-Pex
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC 33POS 0.3MM R/A / 33 Position FFC, FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	I-PEX
Series	MINIFLEX® 3
Package	Tape & Reel
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	33
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.035" (0.90mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tabbed
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	300mA per Contact
Contact Finish Thickness	4.00µin (0.10µm)
Housing Color	Beige
Actuator Color	Beige
Mating Cycles	20
Base Product Number	20538
Standard Package	4,000
MSL Level	1 (Unlimited)
Win Source Part Number	1348109-20538-033E-01
Ultra Librarian 3D Model	Ultra Librarian 20538-033E-01 CAD Model

Description

The I-Pex MINIFLEX® 3 connector is a top and bottom contact type connector with a pitch of 0.30mm.

Series: MINIFLEX® 3
Pitch: 0.30mm
Number of Positions: 33
Solder Retention: Yes
Contact Material: Phosphor Bronze
Contact Finish Thickness: 0.10µm
Voltage Rating: 50V
Current Rating (Per Contact): 300mA
Locking Feature: Flip Lock, Backlock
Cable End Type: Tabbed
Housing Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount, Right Angle
Operating Temperature: -40°C ~ 85°C
Standard Package: 4,000
