Same model may have multiple batches, images only for reference.

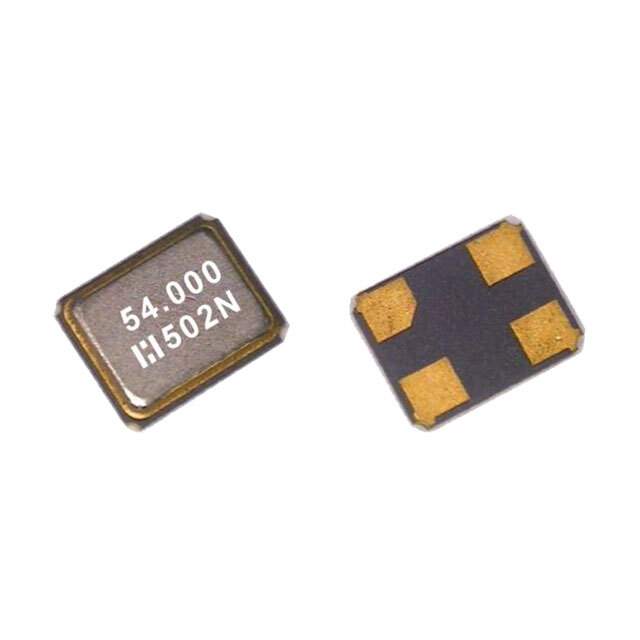

E3SB48E000801E Real Image
Same model may have multiple batches, images only for reference.

E3SB48E000801E

Part No E3SB48E000801E
Manufacturer Hosonic Electronic Co., Ltd
Catalog Oscillators
Description XTAL 3225 48MHZ, 12PF/10/10/0+85 / 48 MHz ±10ppm Crystal 12pF 50 Ohms 4-SMD, No Lead
Datasheet
E3SB48E000801E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Hosonic Electronic Co., Ltd
Series E3SB
Package Tape & Reel
Type MHz Crystal
Frequency 48 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating 0°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.030" (0.75mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names E3SB48E000801ECBB8,3186-E3SB48E000801ETBB8TR-ND,3186-E3SB48E000801ECT,E3SB48E000801ETBB8,3186-E3SB48E000801ETBB8CT,3186-E3SB48E000801ETR,3186-E3SB48E000801EDKR,3186-E3SB48E000801ETBB8CT-ND,3186-E3SB48E000801ETBB8TR
Standard Package 3,000
Win Source Part Number 959744-E3SB48E000801E
Ultra Librarian 3D Model Ultra Librarian E3SB48E000801E CAD Model

Description

The E3SB48E000801E from Hosonic Electronic Co., Ltd is a MHz crystal designed for use in various electronic applications.

  • Mounting Type: SMD (SMT)
  • Packaging: Tape & Reel
  • Frequency: 48 MHz
  • ESR (Equivalent Series Resistance): 50 Ohms
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 12pF
  • Mode: Fundamental
  • Package/Case: 4-SMD, no lead
  • Operating Temperature Range: 0°C to 85°C
