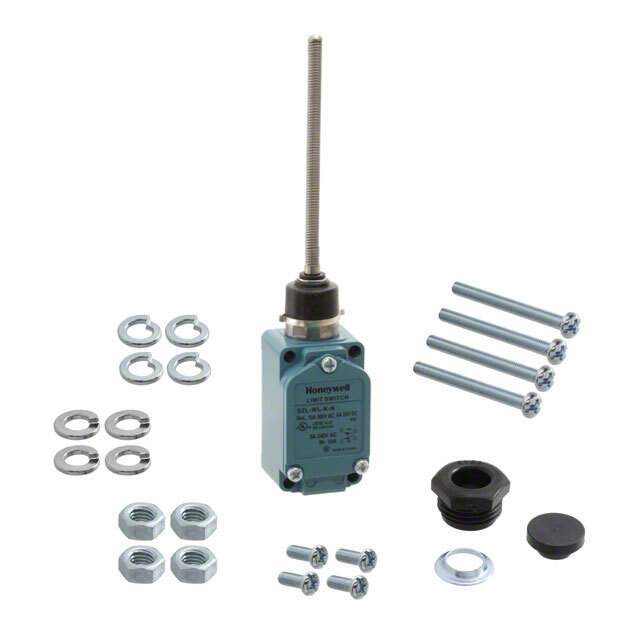

SZL-WL-K-N Real Image
Same model may have multiple batches, images only for reference.

SZL-WL-K-N

Part No SZL-WL-K-N
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 125V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-WL-K-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-WL
Package Bulk
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 10A (AC), 6A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Spring, Coil
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 150gf
Pretravel 0.787" (20.0mm)
Temperature Range - Operating -10°C ~ 80°C
Operating Position 0.787" (20.0mm)
Electrical Life 750,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SZL-WL
Other Names 480-5210,SZLWLKN,SZL-WL-K-N,2266-SZL-WL-K-N
Standard Package 5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1233639-SZL-WL-K-N
Ultra Librarian 3D Model Ultra Librarian SZL-WL-K-N CAD Model

Description

The Honeywell SZL-WL-K-N series is a limit switch used in various electronic applications.

  • Package: Bulk
  • Standard Package: 5
  • ECCN: EAR99
  • Series: SZL-WL-K-N
  • Circuit: SPDT (DB/DM)
  • Voltage Rating: 125V AC and 30V DC
  • Actuator Type: Spring, coil
  • Mechanical Life: 10,000,000 cycles
