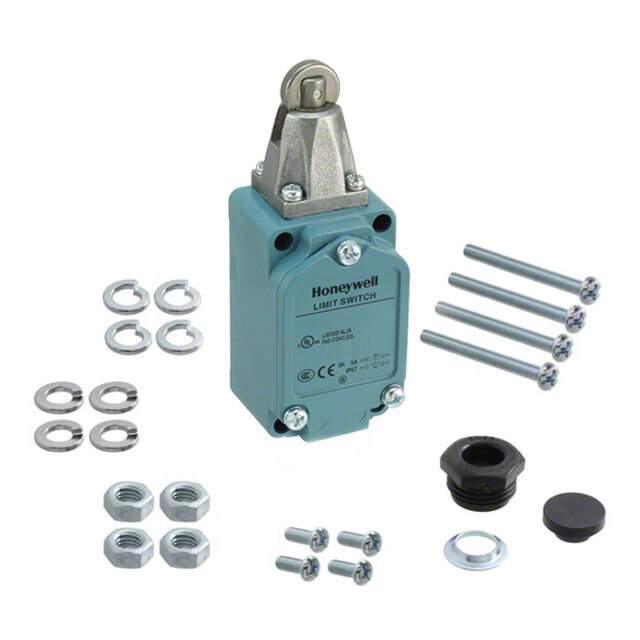

SZL-WL-E-N Real Image
Same model may have multiple batches, images only for reference.

SZL-WL-E-N

Part No SZL-WL-E-N
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 125V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-WL-E-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-WL
Package Bulk
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 10A (AC), 6A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Roller Plunger
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 2720gf
Pretravel 0.067" (1.7mm)
Differential Travel 0.040" (1.0mm)
Overtravel 0.219" (5.6mm)
Temperature Range - Operating -10°C ~ 80°C
Operating Position 0.067" (1.70mm)
Electrical Life 750,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SZL-WL
Other Names 2266-SZL-WL-E-N,480-6691
Standard Package 5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1233637-SZL-WL-E-N
Ultra Librarian 3D Model Ultra Librarian SZL-WL-E-N CAD Model

Description

The Honeywell Sensing and Productivity Solutions SZL-WL-E-N is a limit switch that features a roller plunger actuator type and SPDT circuit.

  • Circuit: SPDT
  • Actuator Type: Roller plunger
  • Voltage Rating: 125V AC and 30V DC
  • Ingress Protection: IP67 (dust tight and waterproof)
  • Mechanical Life: 10,000,000 cycles
  • Electrical Life: 750,000 cycles
  • Operating Force: 2720gf
  • Pretravel: 0.067 inches
  • Differential Travel: 0.040 inches
  • Overtravel: 0.219 inches
  • Operating Position: 0.067 inches
  • Mounting: Chassis mount
  • Temperature Range: -10°C to 80°C
