Same model may have multiple batches, images only for reference.

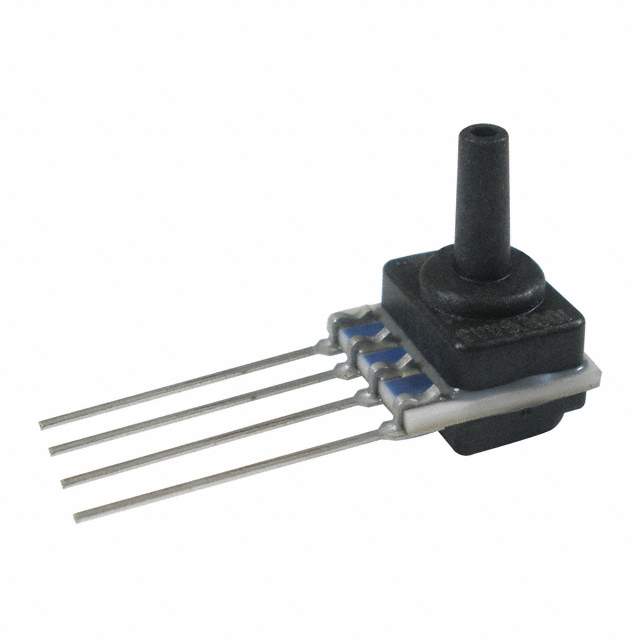

SSCSLNT001BD3A3 Real Image
Same model may have multiple batches, images only for reference.

SSCSLNT001BD3A3

Part No SSCSLNT001BD3A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor ±14.5PSI (±100kPa) Differential Male - 0.1" (2.47mm) Tube 12 b 4-SIP, Side Port
Datasheet
SSCSLNT001BD3A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±14.5PSI (±100kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.1" (2.47mm) Tube
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±58.02PSI (±400kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Side Port
Supplier Device Package 4-SIP
Base Product Number SSCSLNT
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234608-SSCSLNT001BD3A3
Ultra Librarian 3D Model Ultra Librarian SSCSLNT001BD3A3 CAD Model

Description

The Honeywell SSCSLNT001BD3A3 is a TruStability® SSC series differential pressure sensor designed for board mount applications.

  • Output Type: I2C
  • Output: 12 b
  • Accuracy: ±0.25%
  • Operating Pressure: ±14.5PSI (±100kPa)
  • Maximum Pressure: ±58.02PSI (±400kPa)
  • Voltage Supply: 3V ~ 3.6V
  • Port Size: Male - 0.1" (2.47mm) tube
  • Port Style: Barbless
  • Features: Temperature Compensated
  • Package: 4-SIP, side port
  • Supplier: Honeywell Sensing and Productivity Solutions
