Same model may have multiple batches, images only for reference.

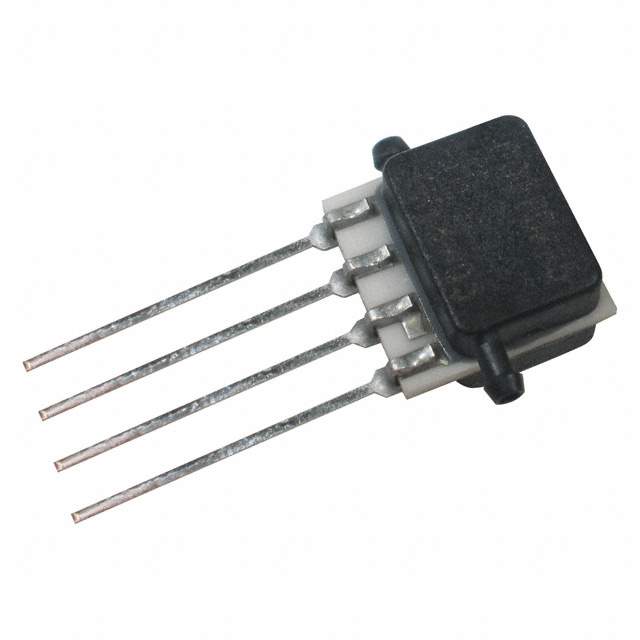

SSCSDRN025MD2A5 Real Image
Same model may have multiple batches, images only for reference.

SSCSDRN025MD2A5

Part No SSCSDRN025MD2A5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor ±0.36PSI (±2.5kPa) Differential Male - 0.19" (4.93mm) Tube, Dual 12 b 4-SIP, Dual Ports, Opposite Sides
Datasheet
SSCSDRN025MD2A5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±0.36PSI (±2.5kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 4.95V ~ 5.05V
Port Size Male - 0.19" (4.93mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±12.33PSI (±85kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Dual Ports, Opposite Sides
Supplier Device Package 4-SIP
Base Product Number SSCSDRN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234644-SSCSDRN025MD2A5
Ultra Librarian 3D Model Ultra Librarian SSCSDRN025MD2A5 CAD Model

Description

The Honeywell TruStability SSC pressure sensor is a high-performance sensor that is designed for use in board mount applications.

  • Pressure Type: differential
  • Operating Pressure: ±0.36PSI (±2.5kPa)
  • Maximum Pressure: ±12.33PSI (±85kPa)
  • Output: Amplified
  • Output Type: I2C
  • Output Range: 12 b
  • Temperature Compensation: Yes
  • Accuracy: ±0.25%
  • Voltage: 4.95V to 5.05V
  • Termination Style: PC pin
  • Port Size: male, 0.19" (4.93mm) tube
  • Port Style: barbed
  • Package: 4-SIP, dual ports, opposite sides
  • Standard Package: 20
  • Manufacturer: Honeywell Sensing and Productivity Solutions
