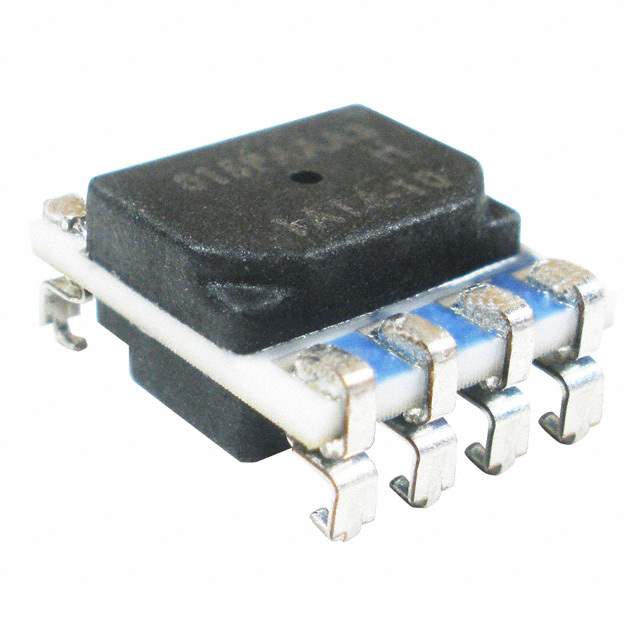

The SSCMNNN1.6BAAA5 is a pressure sensor belonging to Honeywell's TruStability® Silicon Ceramic (SSC) series. These sensors are known for providing cost-effective and reliable pressure sensing solutions. The SSCMNNN1.6BAAA5 is specifically a gauge pressure sensor designed for a relatively low pressure range.

Applications:

• HVAC Systems: Filter monitoring, duct pressure measurement, and variable air volume (VAV) systems.
• Medical Devices: Low pressure monitoring in respiratory equipment and sleep apnea devices.
• Industrial Automation: Pneumatic control systems, low pressure process monitoring, and gas leak detection.
• Instrumentation: Pressure gauges, barometers, and weather stations.
• Environmental Monitoring: Air pressure measurement and leak detection systems.

Features:

• Pressure Range: 0 to 1.6 bar (0 to 160 kPa, 0 to 23.2 psi) gauge
• Unamplified/Uncompensated: Requires external circuitry for amplification and temperature compensation.
• Silicon Ceramic Construction: Offers excellent media compatibility and long-term stability.
• Small Size: Allows for easy integration into compact devices.
• RoHS Compliant: Meets environmental regulations.

Benefits:

• Cost-Effective: Provides a budget-friendly pressure sensing solution for low-pressure applications.
• Reliable: Offers stable and consistent performance.
• Durable: Withstands harsh environments due to silicon ceramic construction.
• Versatile: Suitable for a wide range of low-pressure applications.

Additional Details:

The SSCMNNN1.6BAAA5 is a gauge pressure sensor, meaning it measures pressure relative to ambient atmospheric pressure. It is an unamplified and uncompensated sensor, requiring external circuitry for signal amplification and temperature compensation to achieve optimal accuracy. The silicon ceramic construction provides good resistance to various media. This sensor is typically used in applications where a basic, reliable, and cost-effective low-pressure sensing solution is needed. External calibration and signal conditioning are necessary to achieve the desired performance. The small size allows for easy integration into various applications. The uncompensated nature requires more design considerations for optimal performance across the full temperature range.
