Same model may have multiple batches, images only for reference.

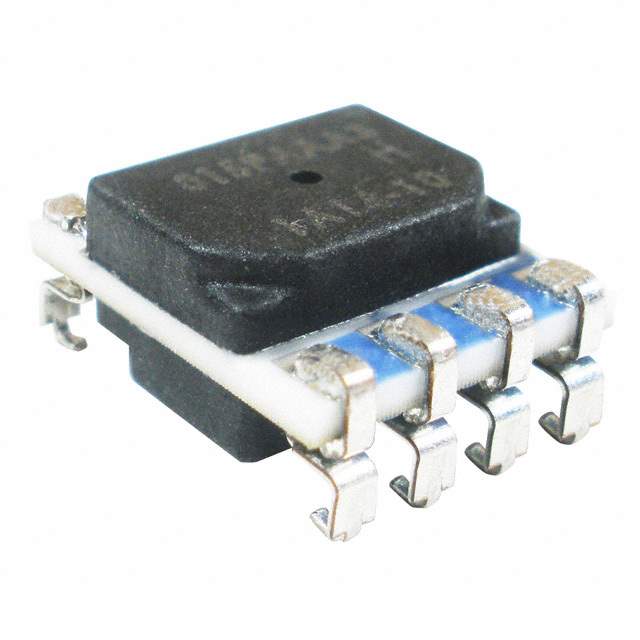

SSCMNNN010BASA3 Real Image
Same model may have multiple batches, images only for reference.

SSCMNNN010BASA3

Part No SSCMNNN010BASA3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 145.04PSI (1000kPa) Absolute 12 b 8-SMD, J-Lead
Datasheet
SSCMNNN010BASA3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 145.04PSI (1000kPa)
Output Type SPI
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 246.56PSI (1700kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SMD, J-Lead
Supplier Device Package 8-SMT
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234306-SSCMNNN010BASA3
Ultra Librarian 3D Model Ultra Librarian SSCMNNN010BASA3 CAD Model

Description

The TruStability® SSC pressure sensor is a high-precision device with an amplified output and temperature compensation feature.

  • Voltage Range: 3V to 3.6V
  • Output Type: SPI with 12-bit resolution
  • Accuracy: ±0.25%
  • Pressure Type: Absolute
  • Operating Pressure: 145.04PSI (1000kPa)
  • Maximum Pressure: 246.56PSI (1700kPa)
  • Package: 8-SMD, J-Lead
  • Termination Style: SMD (SMT) Tab
