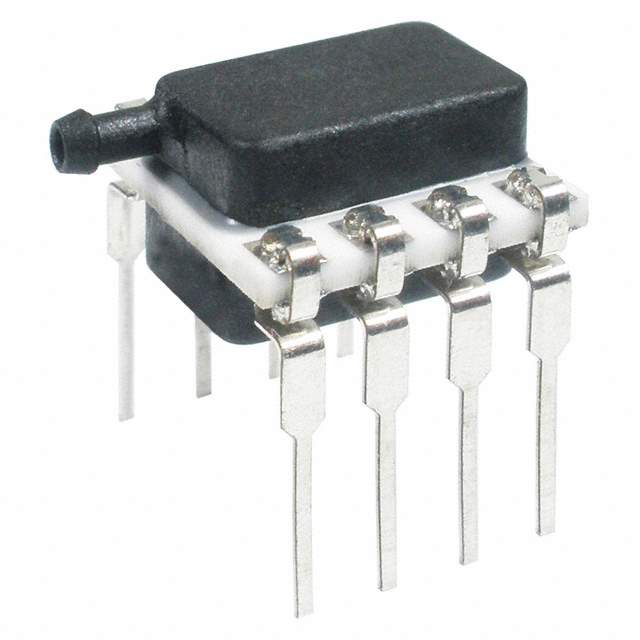

Same model may have multiple batches, images only for reference.

SSCDRNN250MGAA5

Name: SSCDRNN250MGAA5
Brand: Honeywell
SKU: 1234380
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SSCDRNN250MGAA5
Manufacturer	Honeywell
Catalog	Pressure Sensors, Transducers
Description	SENSOR PRES .25BAR GAUG 5V DIP / Pressure Sensor 3.63PSI (25kPa) Vented Gauge Male - 0.08" (1.93mm) Tube 0.5 V ~ 4.5 V 8-DIP (0.524", 13.30mm), Side Port
Datasheet	SSCDRNN250MGAA5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Pressure Sensors, Transducers
Mfr	Honeywell Sensing and Productivity Solutions
Series	TruStability® SSC
Package	Bulk
Applications	Board Mount
Pressure Type	Vented Gauge
Operating Pressure	3.63PSI (25kPa)
Output Type	Analog Voltage
Output	0.5 V ~ 4.5 V
Accuracy	±0.25%
Voltage - Supply	4.75V ~ 5.25V
Port Size	Male - 0.08" (1.93mm) Tube
Port Style	Barbed
Features	Amplified Output, Temperature Compensated
Termination Style	PC Pin
Maximum Pressure	20.31PSI (140kPa)
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	8-DIP (0.524", 13.30mm), Side Port
Supplier Device Package	8-DIP
Base Product Number	SSCDRNN
Other Names	SSCDRNN250MGAA5,480-5472
Standard Package	50
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	9026.20.4000
Win Source Part Number	1234380-SSCDRNN250MGAA5
Ultra Librarian 3D Model	Ultra Librarian SSCDRNN250MGAA5 CAD Model

Alternative Products

Description

The Honeywell SSCDRNN250MGAA5 is a vented gauge pressure sensor that is designed for board mounting applications.

Output: Amplified output
Feature: Temperature-compensated feature
Output Type: Analog voltage
Pressure Type: Vented gauge
Maximum Operating Pressure: 3.63PSI
Temperature Range: -40 to 85 degrees Celsius
Voltage Supply: 4.75V to 5.25V
Mounting: 8-DIP (0.524 inches, 13.30mm) side port package
