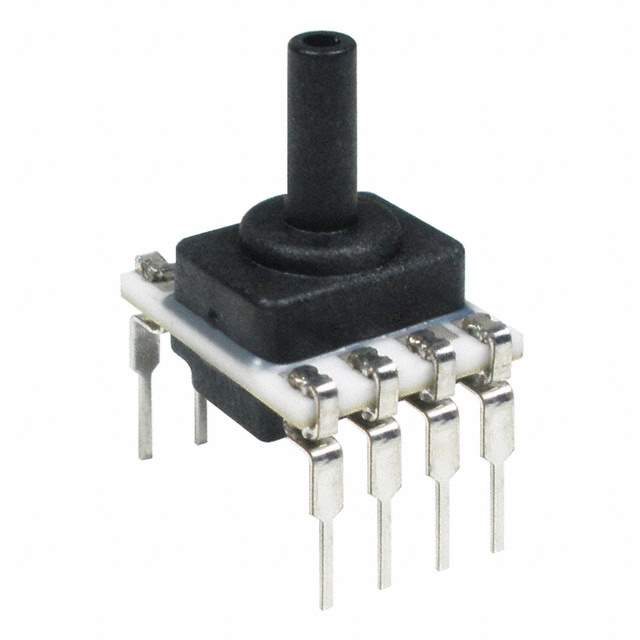

SSCDLND010BGAA3 Real Image
Same model may have multiple batches, images only for reference.

SSCDLND010BGAA3

Part No SSCDLND010BGAA3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description STAND ACCURACY TOTAL ERROR BAND / Pressure Sensor 145.04PSI (1000kPa) Vented Gauge Male - 0.1" (2.47mm) Tube 0.33 V ~ 2.97 V 8-DIP (0.524", 13.30mm), Top Port
Datasheet
SSCDLND010BGAA3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 145.04PSI (1000kPa)
Output Type Analog Voltage
Output 0.33 V ~ 2.97 V
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.1" (2.47mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 246.56PSI (1700kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-DIP (0.524", 13.30mm), Top Port
Supplier Device Package 8-DIP
Base Product Number SSCDLND
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234455-SSCDLND010BGAA3
Ultra Librarian 3D Model Ultra Librarian SSCDLND010BGAA3 CAD Model

Description

The TruStability SSC pressure sensor is a high-performance sensor that offers a vented gauge pressure type and a maximum pressure of 246.56PSI.

  • Pressure Type: Vented Gauge
  • Maximum Pressure: 246.56PSI
  • Output: Amplified output, temperature compensation
  • Output Type: Analog voltage
  • Output Range: 0.33V to 2.97V
  • Voltage Supply: 3V to 3.6V
  • Application: Board mount
  • Package: 8-DIP (0.524", 13.30mm), top port
  • Port Style: Male 0.1" (2.47mm) tube
  • Operating Temperature: -40°C to 85°C
  • Accuracy: ±0.25%
