Same model may have multiple batches, images only for reference.

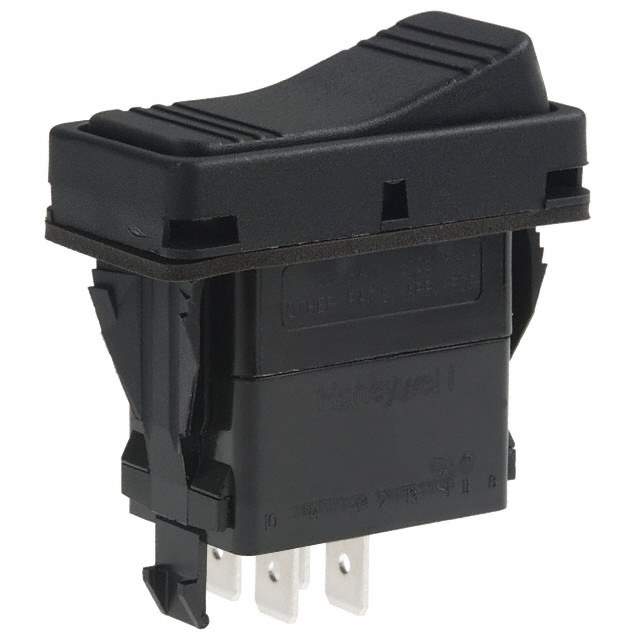

SRN91-24BB Real Image
Same model may have multiple batches, images only for reference.

SRN91-24BB

Part No SRN91-24BB
Manufacturer Honeywell
Catalog Rocker Switches
Description SWITCH ROCKER DPST-NC 15A 125V / Rocker Switch DPST-NC 15A (AC) 125 V Panel Mount, Snap-In
Datasheet
SRN91-24BB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SRN
Package Bulk
Product Status Obsolete
Mounting Type Panel Mount, Snap-In
Circuit DPST-NC
Switch Function On-Mom
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions Rectangular - 36.83mm x 20.82mm
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 150,000 Cycles
Electrical Life 50,000 Cycles
Other Names 480-2149
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233228-SRN91-24BB
Ultra Librarian 3D Model Ultra Librarian SRN91-24BB CAD Model

Description

The Honeywell Sensing and Productivity Solutions SRN series rocker switch with a Win Source part number of 1233228-SRN91-24BB is a DPST-NC circuit with a current rating of 15A (AC).

  • Circuit: DPST-NC
  • Current Rating: 15A (AC)
  • Ingress Protection: IP68
  • Voltage Rating: 125V (AC)
  • Termination Style: Quick connect-0.250" (6.3mm)
  • Package: Bulk
  • Standard Package: 20
  • Panel Cutout Dimension: Rectangular-36.83mm x 20.82mm
  • Actuator Type: Concave (curved)
  • Mechanical Life: 150,000 cycles
  • Electrical Life: 50,000 cycles
  • Status: Obsolete
