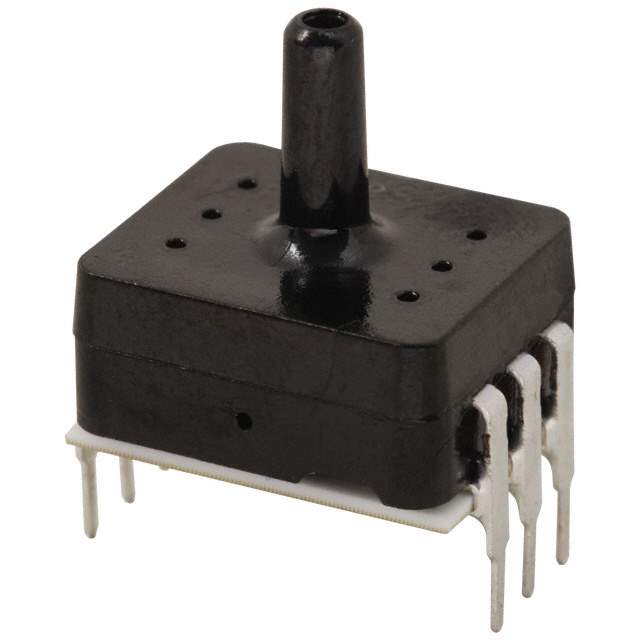

SDX30G2 Real Image
Same model may have multiple batches, images only for reference.

SDX30G2

Part No SDX30G2
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 30PSIG DIP / Pressure Sensor 30PSI (206.84kPa) Vented Gauge Male - 0.11" (2.67mm) Tube 0 mV ~ 90 mV (12V) 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SDX
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 30PSI (206.84kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 90 mV (12V)
Accuracy ±1%
Voltage - Supply 20V
Port Size Male - 0.11" (2.67mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 60PSI (413.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Other Names 287-1043R,Q4118164,287-1043
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234783-SDX30G2
Ultra Librarian 3D Model Ultra Librarian SDX30G2 CAD Model

Description

The SDX30G2 by Honeywell Sensing and Productivity Solutions is a wheatstone bridge output type pressure sensor.

  • Output Type: Wheatstone Bridge
  • Pressure Type: Vented Gauge
  • Maximum Pressure: 60PSI (413.69kPa)
  • Accuracy: ±1%
  • Temperature Compensated: Yes
  • Voltage Supply: 20V
  • Application: Board Mount
  • Port Size: Male 0.11" (2.67mm) Tube
  • Port Style: Barbless
  • Mounting Type: PC Pins
  • Package: 6-DIP Module
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • Package Quantity: 25
