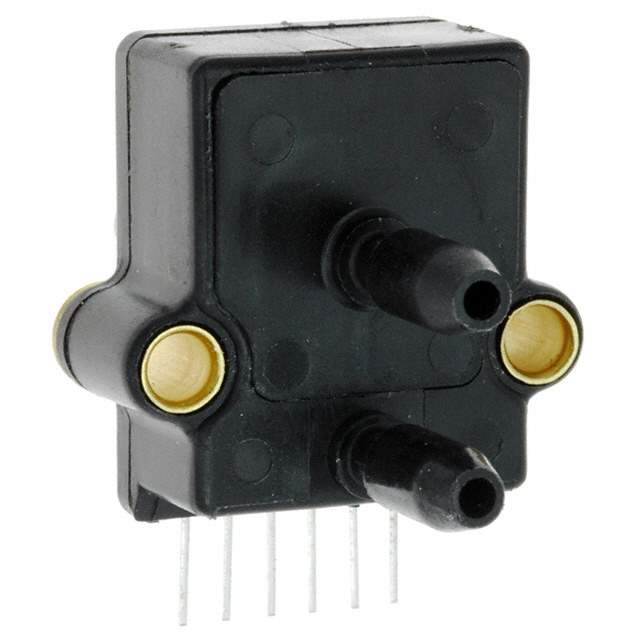

SCX100DN Real Image
Same model may have multiple batches, images only for reference.

SCX100DN

Part No SCX100DN
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 100PSID  /  Pressure Sensor 100PSI (689.48kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0 mV ~ 100 mV (12V) 6-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SCX
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure 100PSI (689.48kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV (12V)
Accuracy ±1%
Voltage - Supply 20V
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-SIP Module
Base Product Number SCX100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 287-1020-NDR,2266-SCX100DN,287-1020
Standard Package 25
Win Source Part Number 1199045-SCX100DN
Ultra Librarian 3D Model Ultra Librarian SCX100DN CAD Model

Description

The Honeywell Sensing and Productivity Solutions SCX100DN pressure sensor is a high-quality electronic component that offers a pressure range of 100PSI and an output of 0mV to 100mV (12V).

  • Output: 0mV to 100mV (12V)
  • Pressure Range: 100PSI
  • Ideal for: Board Mount Systems
  • Output Type: Wheatstone Bridge
  • Temperature Compensation: Yes
  • Tolerance: ±1%
  • Pressure Type: Differential
  • Port Style: Dual Port with Barbed Male 0.19” (4.8mm) Tube
  • Operating Temperature Range: -40°C to 85°C
