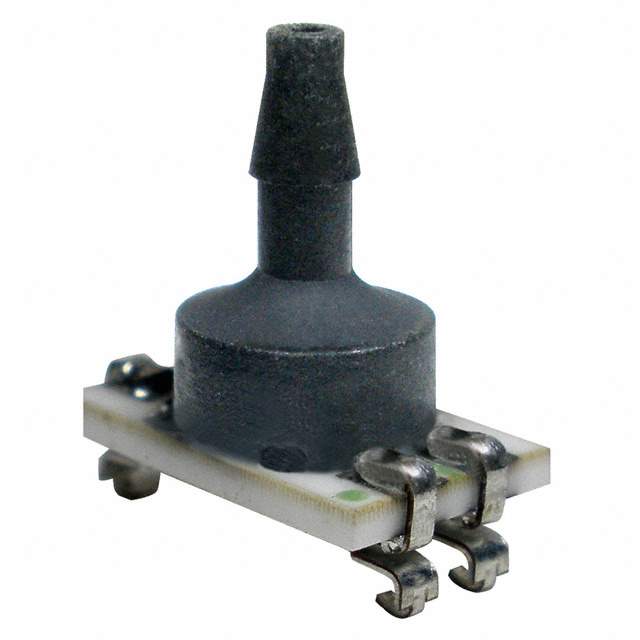

NBPMANS015PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPMANS015PGUNV

Part No NBPMANS015PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 0psi to 15psi Gage 4-Pin SMT
Datasheet
NBPMANS015PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 15 PSI (103.42 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 75 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.75" (1.91mm) Tube
Port Style Barbed
Termination Style Surface Mount (SMD,SMT)
Maximum Pressure 30 PSI (206.84 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-SMD, J-Lead, Top Port
Win Source Part Number 790550-NBPMANS015PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPMANS015PG
Introduction Date June 29, 2012
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian NBPMANS015PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBP series NBPMANS015PGUNV is a vented gauge pressure type sensor designed for use in various applications.

  • Operating Supply Voltage: 1.8V to 12V
  • Output: 0mV to 75mV (5V)
  • Accuracy: ±0.25%
  • Package: 4-SMD, J-Lead, Top Port
  • Port Size: Male - 0.75" (1.91mm) tube
  • Port Style: Barbed
  • Operating Temperature: -40°C to 125°C
  • Operating Pressure: 15 PSI (103.42 kPa)
  • Maximum Pressure: 30 PSI (206.84 kPa)
