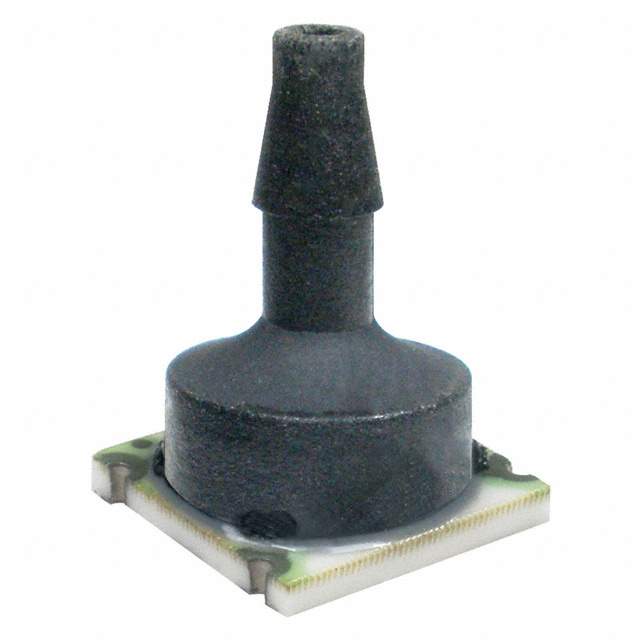

NBPLANN060MGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPLANN060MGUNV

Part No NBPLANN060MGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS
Datasheet
NBPLANN060MGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 0.87 PSI (6 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 28.5 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.75" (1.91mm) Tube
Port Style Barbed
Termination Style Surface Mount
Maximum Pressure 12.33 PSI (85 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 6-SMD, No Lead, Top Port
Win Source Part Number 790539-NBPLANN060MGUNV
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NBPLANN060MGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBPANN060MGUNV is a vented gauge pressure sensor that operates at 0.87 PSI (6 kPa) operating pressure and has a male-0.75" (1.91mm) tube port size.

  • Output Type: Wheatstone bridge
  • Operating Supply Voltage: 1.8V to 12V
  • Termination Style: Surface mount
  • Package: 6-SMD, No Lead
  • Termination: Top Port
  • Output: 0mV to 28.5mV (5V)
  • Output Accuracy: ±0.25%
  • Operating Temperature: -40°C to 125°C
  • Maximum Pressure: 12.33 PSI (85 kPa)
  • Supply and Demand Status: Balance
