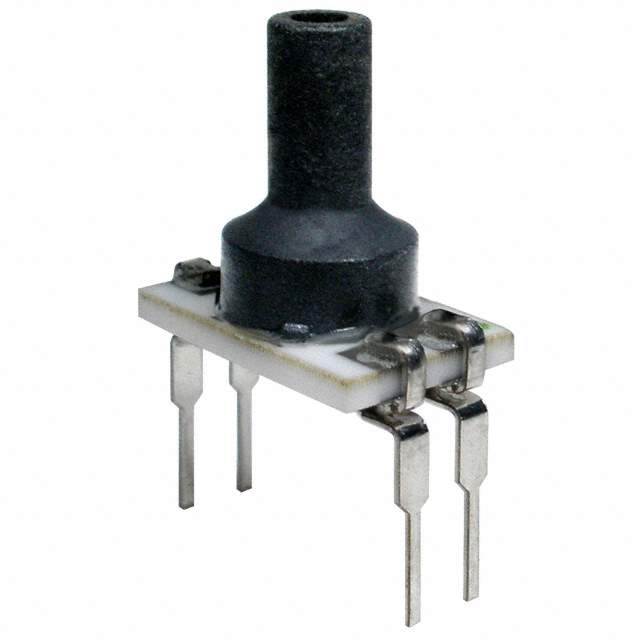

NBPDLNN030PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPDLNN030PGUNV

Part No NBPDLNN030PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 30 PSIG UNAMPLIFIED DIP / Pressure Sensor 0psi to 30psi Gage 4-Pin DIP Module
Datasheet
NBPDLNN030PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 30 PSI (206.84 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 105 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.13" (3.18mm) Tube
Port Style Barbless
Termination Style PC Pin
Maximum Pressure 60 PSI (413.69 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-DIP (0.453", 11.50mm), Top Port
Win Source Part Number 790535-NBPDLNN030PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPDLNN030PG
Introduction Date June 29, 2012
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian NBPDLNN030PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBPDLNN030PGUNV pressure transducer is a vented gauge pressure transducer that has an operating pressure of 30 PSI (206.84 kPa) and a maximum pressure of 60 PSI (413.69 kPa).

  • Port Size: Male - 0.13" (3.18mm) tube
  • Port Style: Barbless
  • Output Type: Wheatstone bridge
  • Output: 0mV ~ 105mV (5V)
  • Accuracy: ±0.25%
  • Operating Temperature: -40°C ~ 125°C
  • Family: NBPDLNN030PG
  • Package: 4-DIP (0.453", 11.50mm), top port
  • Category: Sensor and transducer
  • Popularity: Medium
  • Supply and Demand Status: Limited
