Same model may have multiple batches, images only for reference.

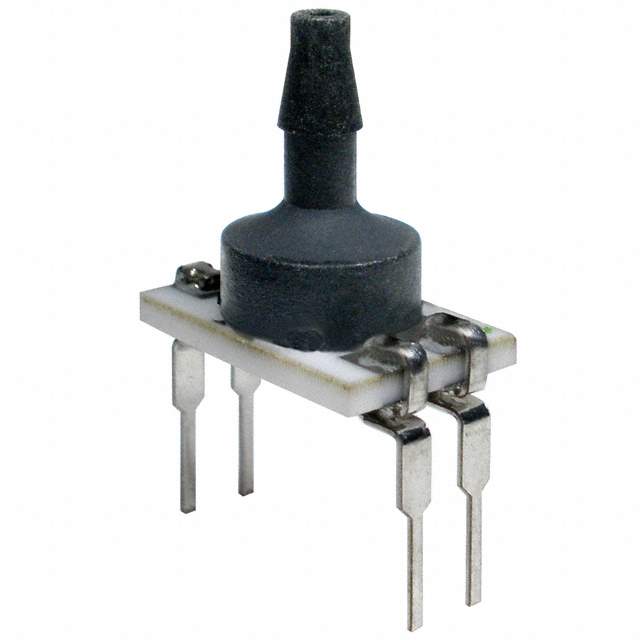

NBPDANN030PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPDANN030PGUNV

Part No NBPDANN030PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 30PSI GAUG 12V DIP / Pressure Sensor 0psi to 30psi Gage 4-Pin DIP
Datasheet
NBPDANN030PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 30 PSI (206.84 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 105 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.08" (1.91mm) Tube
Port Style Barbed
Termination Style PC Pin
Maximum Pressure 60 PSI (413.69 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-DIP (0.453", 11.50mm), Top Port
Win Source Part Number 790530-NBPDANN030PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPDANN030PG
Introduction Date June 29, 2012
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian NBPDANN030PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions electronic component with the part number 790530-NBPDANN030PGUNV is a medium popularity product with limited supply and demand status.

  • Pressure Type: Vented Gauge
  • Pressure Range: 30 PSI to 60 PSI
  • Operating Temperature: -40°C to 125°C
  • Output Type: Wheatstone bridge
  • Accuracy: ±0.25%
  • Output Voltage: 0 mV to 105 mV (5V)
  • Operating Supply Voltage: 1.8 V to 12 V
  • Package: 4-DIP (0.453", 11.50mm), top port
  • Alternative Parts: XHBP030GZP, XHBP005GZP, XHBP015GZP, XHBP030GFP
  • ECCN: EAR99
  • Country of Origin: China
  • Estimated EOL Date: 2031
