Same model may have multiple batches, images only for reference.

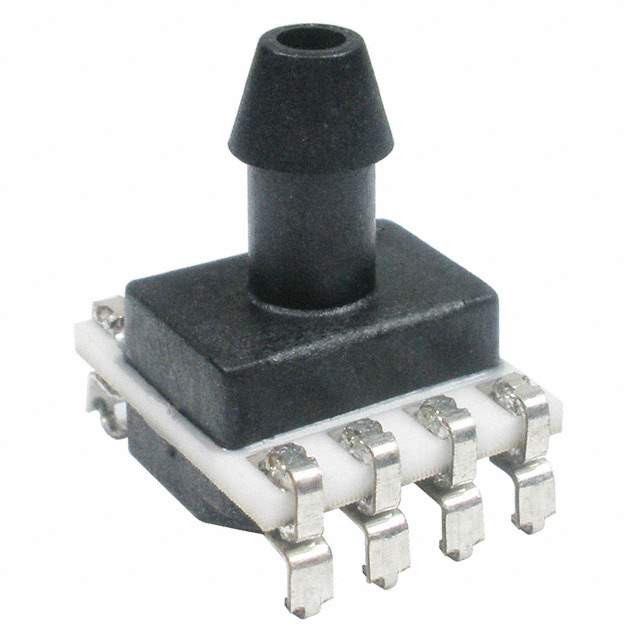

HSCMANN015PA2A3 Real Image
Same model may have multiple batches, images only for reference.

HSCMANN015PA2A3

Part No HSCMANN015PA2A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSIA 0.19" 12BIT 8SMD / Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19" (4.93mm) Tube 12 b 8-SMD, J-Lead, Top Port
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® HSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style J Lead
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SMD, J-Lead, Top Port
Supplier Device Package 8-SMD
Base Product Number HSCMANN
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1338161-HSCMANN015PA2A3
Ultra Librarian 3D Model Ultra Librarian HSCMANN015PA2A3 CAD Model

Description

The HSCMANN015PA2A3 pressure sensor is a part of the TruStability® HSC series.

  • Termination Style: J-lead
  • Features: Amplified Output and Temperature Compensation
  • Output Type: I2C
  • Output: 12 b
  • Accuracy: ±0.25%
  • Pressure Type: Absolute
  • Operating Pressure: 15PSI (103.42kPa)
  • Maximum Pressure: 30PSI (206.84kPa)
  • Voltage Supply: 3V to 3.6V
  • Mounting: Surface Mounted
  • Operating Temperature Range: -20°C to 85°C
  • Packaging: Bulk
