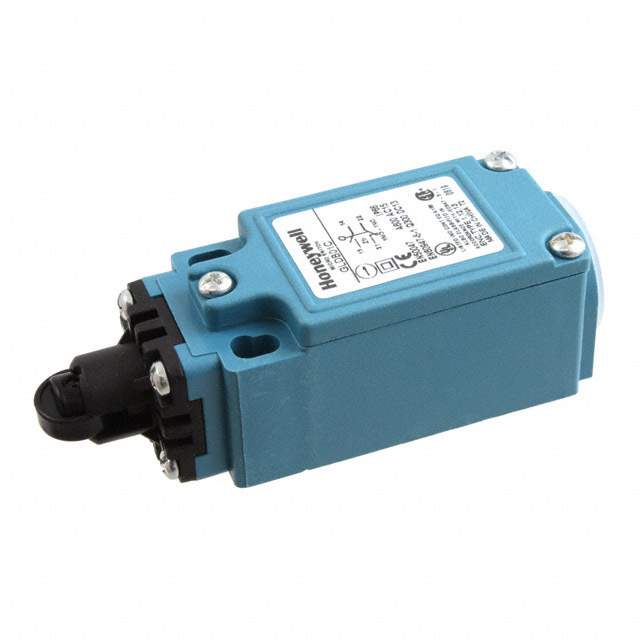

GLDB01C Real Image
Same model may have multiple batches, images only for reference.

GLDB01C

Part No GLDB01C
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 6A 120V / Switch SPDT Chassis Mount
Datasheet
GLDB01C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 6A (AC), 550mA (DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 125 V
Actuator Type Roller Plunger
Mounting Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 1632gf
Pretravel 0.120" (3.0mm)
Differential Travel 0.035" (0.9mm)
Overtravel 0.118" (3.0mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 1.100" (28.0mm)
Mechanical Life 15,000,000 Cycles
Base Product Number GLDB01
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number GLDB01C-ND,2266-GLDB01C,480-3519
Standard Package 1
Win Source Part Number 1323825-GLDB01C
Ultra Librarian 3D Model Ultra Librarian GLDB01C CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1323825-GLDB01C is a high-quality electronic component with a SPDT circuit.

  • ROHS: Compliant
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Voltage Rating: 120V AC and 125V DC
  • Mechanical Life: 15,000,000 cycles
  • Operating Force: 1632gf
  • Supply and Demand Status: Unlimited
  • Suitable for: Use in various electronic devices and systems
