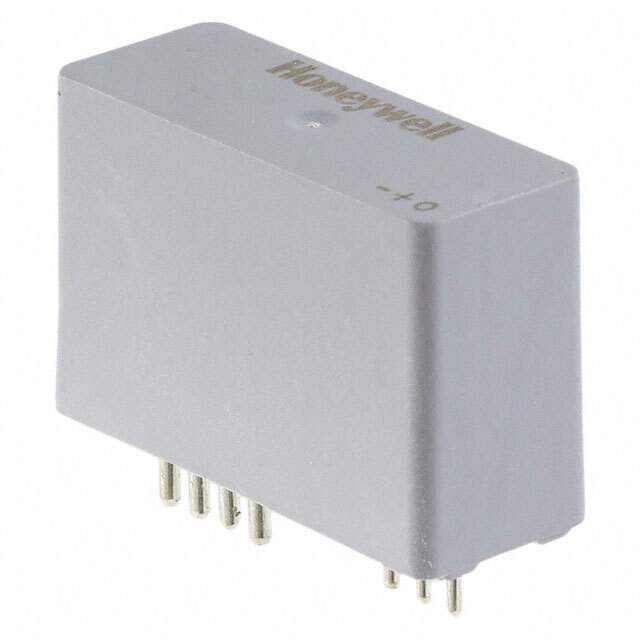

CSNE151-204

Part No CSNE151-204
Manufacturer Honeywell
Catalog Current Transducers
Description SENSOR CURRENT HALL 90A AC/DC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 90A
Number of Channels 1
Output Ratiometric, Current
Frequency DC to 150kHz
Linearity ±0.2%
Accuracy ±0.5%
Supply Voltage - Operating ±15V
Response Time 1μs
Current - Supply (Max) 10mA
Temperature Range - Operating 0°C to 70°C
Polarization Bidirectional
Mounting Through Hole
Dimension Module, Single Pass Through
Win Source Part Number 050501-CSNE151-204
Popularity Medium
Supply and Demand Status Balance
Quantity per package 40
Ultra Librarian 3D Model Ultra Librarian CSNE151-204 CAD Model

Description

Description

The CSNE151-204 is an advanced sensor tailored for high-performance applications. Offering enhanced measurement accuracy, this model is perfect for scenarios where precision is critical. It features an easy-to-implement design, streamlining integration into various systems.

Features and Benefits

  • Enhanced accuracy for critical applications.
  • Compact and easy to install.
  • Designed for low power consumption.
  • Supports a wide operating temperature range.

Applications

  • Medical instrumentation
  • Robotics
  • Renewable energy systems
  • Smart building technologies

Additional Details

The CSNE151-204 stands out with its ability to maintain performance in varying environmental conditions, ensuring consistent data collection across a range of uses.
