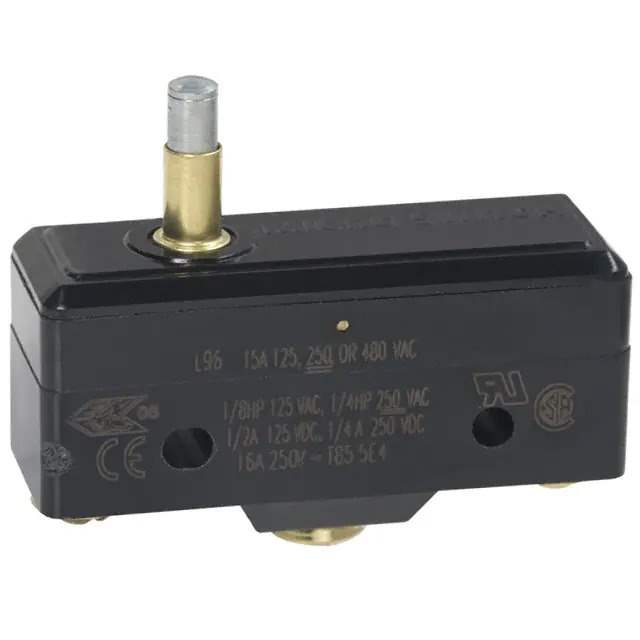

BZ-2RS-A2 Real Image
Same model may have multiple batches, images only for reference.

BZ-2RS-A2

Part No BZ-2RS-A2
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Chassis Mount
Datasheet
BZ-2RS-A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Honeywell
Series BZ
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Overtravel Plunger
Mounting Type Chassis Mount
Termination Style Screw Terminal
Features Steel Plunger
Operating Force 255 ~ 368gf
Release Force 113gf
Operating Position 1.110" (28.2mm)
Pretravel 0.015" (0.4mm)
Differential Travel 0.002" (0.05mm)
Overtravel 0.060" (1.5mm)
Temperature Range - Operating -55°C ~ 85°C
Mechanical Life 20,000,000 Cycles
Base Product Number BZ-2
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Win Source Part Number 847219-BZ-2RS-A2
Ultra Librarian 3D Model Ultra Librarian BZ-2RS-A2 CAD Model

Description

The BZ series limit switch is a reliable switch used in various applications.

  • Series: BZ
  • Termination Style: Screw Terminal
  • Actuator: Steel Plunger
  • Package: Bulk
  • Ingress Protection: Not Provided
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 125V
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Overtravel Plunger
  • Electrical Life: Not Specified
  • Operating Force: 255 to 368gf
  • Mechanical Life: 20,000,000 cycles
  • Release Force: 113gf
  • Pretravel: 0.015" (0.4mm)
  • Differential Travel: 0.002" (0.05mm)
  • Overtravel: 0.060" (1.5mm)
  • Operating Position: 1.110" (28.2mm)
  • Mounting Type: Chassis Mount
  • Operating Temperature: -55°C to 85°C
  • Manufacturer: Honeywell
  • Status: Active
