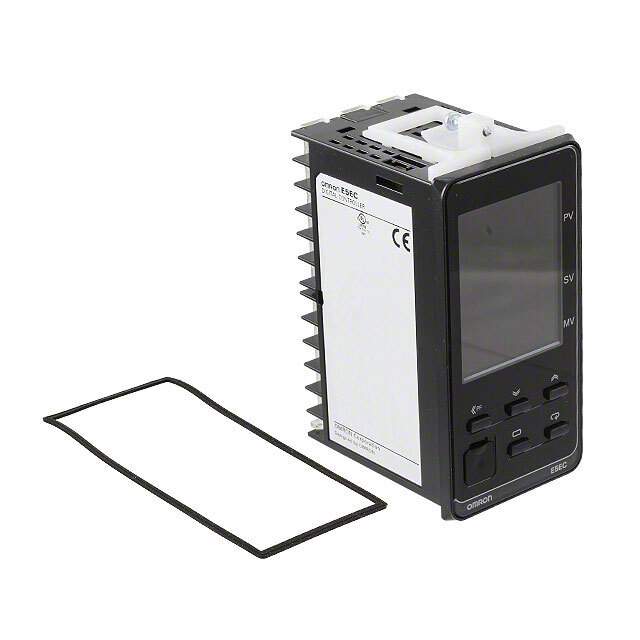

E5EC-QX4A5M-009 Real Image
Same model may have multiple batches, images only for reference.

E5EC-QX4A5M-009

Part No E5EC-QX4A5M-009
Manufacturer Omron
Catalog Controllers - Process, Temperature
Description CONTROL TEMP/PROC RELAY/VOLT OUT / E5CC/E5EC Temperature Controller
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Industrial Controls
Manufacturer Omron Automation and Safety
Series E5EC
Type Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
Input Range -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output Type Relay (4), Voltage (External SSR)
Control Method On/Off, Proportional (PID)
Communications RS-485 (CompoWay/F, Modbus)
Number Of Characters Per Row 4, 4, 4
Display Type LCD - Tri Color Characters, Backlight
Display Characters - Height 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm)
Operating Supply Voltage 100 ~ 240VAC
Panel Cutout Dimensions Rectangular - 92.00mm x 45.00mm
Mounting Panel Mount
Termination Style Screw Terminal
Ingress Protection IP66 - Dust Tight, Water Resistant
Operating Temperature Range -10°C ~ 55°C
Features Event Input, Heater Fault Detection
Weight 0.463 lb (210.01g)
Win Source Part Number 795851-E5EC-QX4A5M-009
Popularity Medium
Supply and Demand Status Balance
Introduction Date November 29, 2011
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian E5EC-QX4A5M-009 CAD Model

Description

The Omron Automation and Safety E5EC-QX4A5M-009 temperature controller is a process controller that is used for RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, and W temperature control.

  • Termination Style: Screw Terminal
  • Operating Temperature Range: -10°C to 55°C
  • Features: Event Input and Heater Fault Detection
  • Ingress Protection: IP66 - Dust Tight, Water Resistant
  • Mounting: Panel Mount
  • Output Type: Relay (4) and External SSR Voltage
  • Operating Supply Voltage: 100 ~ 240VAC
  • Panel Cutout Dimensions: Rectangular - 92.00mm x 45.00mm
  • Popularity: Medium
  • Supply and Demand Status: Balanced
