Same model may have multiple batches, images only for reference.

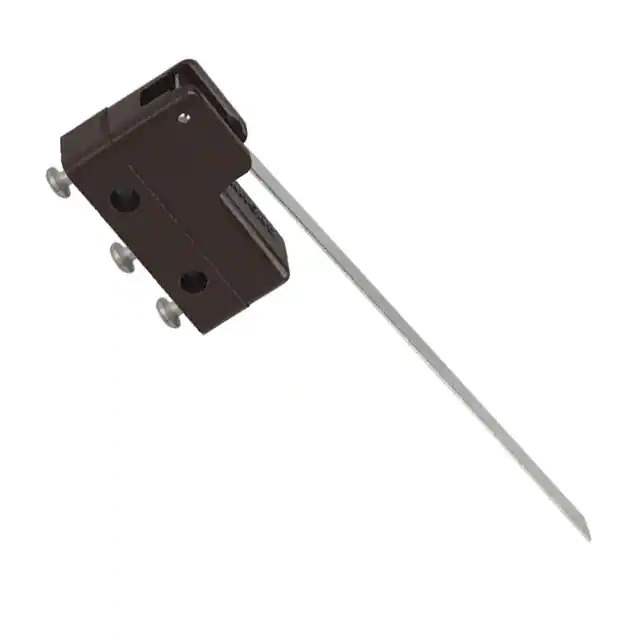

311SM703-T Real Image
Same model may have multiple batches, images only for reference.

311SM703-T

Part No 311SM703-T
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 4A 250V / Switch SPDT Chassis Mount
Datasheet
311SM703-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Honeywell
Series SM
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 4A (AC), 5A (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Turret
Operating Force 6.118gf
Release Force 1.020gf
Operating Position 0.280" (7.1mm)
Pretravel 0.310" (7.9mm)
Differential Travel 0.070" (1.8mm)
Overtravel 0.057" (1.45mm)
Temperature Range - Operating -55°C ~ 125°C
Mechanical Life 10,000,000 Cycles
Base Product Number 311SM
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 847405-311SM703-T
Ultra Librarian 3D Model Ultra Librarian 311SM703-T CAD Model

Description

The 847405-311SM703-T is a limit switch from Honeywell.

  • Series: SM
  • Termination Style: Solder Turret
  • Package: Tray
  • Standard Package: 100 Pieces
  • Voltage Rating AC: 250V
  • Voltage Rating DC: 30V
  • Circuit Configuration: SPDT (Single Pole Double Throw)
  • Switch Function: On-Mom (Momentary On)
  • Actuator Type: Lever, Straight
  • Electrical Life: 10,000,000 Cycles
  • Mechanical Life: 10,000,000 Cycles
  • Operating Force: 6.118gf
  • Release Force: 1.020gf
  • Pretravel: 0.310" (7.9mm)
  • Differential Travel: 0.070" (1.8mm)
  • Overtravel: 0.057" (1.45mm)
  • Operating Position: 0.280" (7.1mm)
  • Mounting Type: Chassis Mount
  • Operating Temperature: -55°C to 125°C
  • MSL Level: 1 (Unlimited)
  • Current Rating AC: 4A (AC)
  • Current Rating DC: 5A (DC)
  • HTSUS: 8536.50.7000
  • Base Product Number: 311SM
  • Product Status: Active
