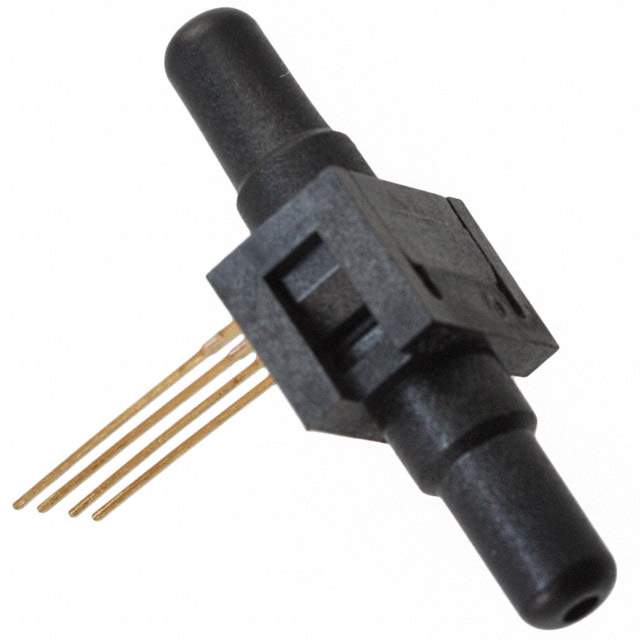

26PCBFA3D Real Image
Same model may have multiple batches, images only for reference.

26PCBFA3D

Part No 26PCBFA3D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 5PSI DIFFERENTIAL GAUGE / Pressure Sensor ±5PSI (±34.47kPa) Differential Male - 0.2" (5mm) Tube, Dual 0 mV ~ 50 mV (10V) 4-SIP Module
Datasheet
26PCBFA3D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±5PSI (±34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 50 mV (10V)
Accuracy ±0.5%
Voltage - Supply 2.5V ~ 16V
Port Size Male - 0.2" (5mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±20PSI (±137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Case / Package 4-SIP Module
Base Product Number 26PCB
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 480-3622,2266-26PCBFA3D,Q5753186,T1366703,26PCBFA3D-ND
Standard Package 25
Win Source Part Number 1336487-26PCBFA3D
Ultra Librarian 3D Model Ultra Librarian 26PCBFA3D CAD Model

Description

The Honeywell Sensing and Productivity Solutions 26PCBFA3D is a differential pressure sensor that is temperature compensated.

  • Applications: Board mount applications.
  • Output Type: Wheatstone Bridge.
  • Output: 0 mV to 50 mV (10V).
  • Accuracy: ±0.5%.
  • Pressure Type: Differential.
  • Operating Pressure: ±5PSI (±34.47kPa).
  • Maximum Pressure: ±20PSI (±137.9kPa).
  • Voltage Supply: 2.5V to 16V.
  • Temperature Range: -40°C to 85°C.
  • Package: 4-SIP module.
